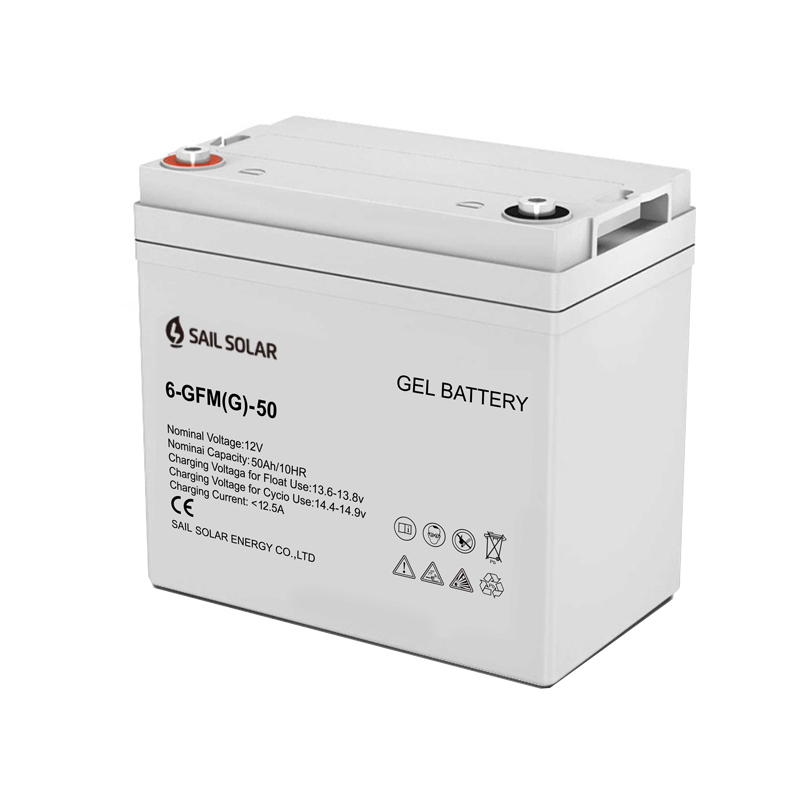

SAIL SOLAR 12V 50Ah valve regulated lead acid gel batteries, with the most advanced technology, offering excellent performance after deep discharge under frequent cyclic dischar
Brand Name :
SAIL SOLARProduct Model :
6-GFM(G)-50Capacity Range :
12V 50Ah @10 hr-rate to 1.80V per cell @25℃Design Life :
15 years for 12V (25℃)Efficiency :
≥98%Number of Cycles :
3000+timesTerminal Type :
F5 (M8)/ F12 (M8)Operation Temperature :
-40℃~60℃Self Discharge Rate :
≤3% per monthCertificates :
CE/ IEC60829-21/22-2004/ IEC61427-2005/ISO9001/ISO14001/OHSAS18001Application :
EPS and UPS battery backup/Solar and wind energy storage system /Telecommunication/Signal, emergency lighting and security systemColor&OEM :
White or Black is optional, can be customized. Support OEMSAIL SOLAR Provide VRLA Gel Battery 12V 50AH For Off Grid and Hybrid Solar System Use

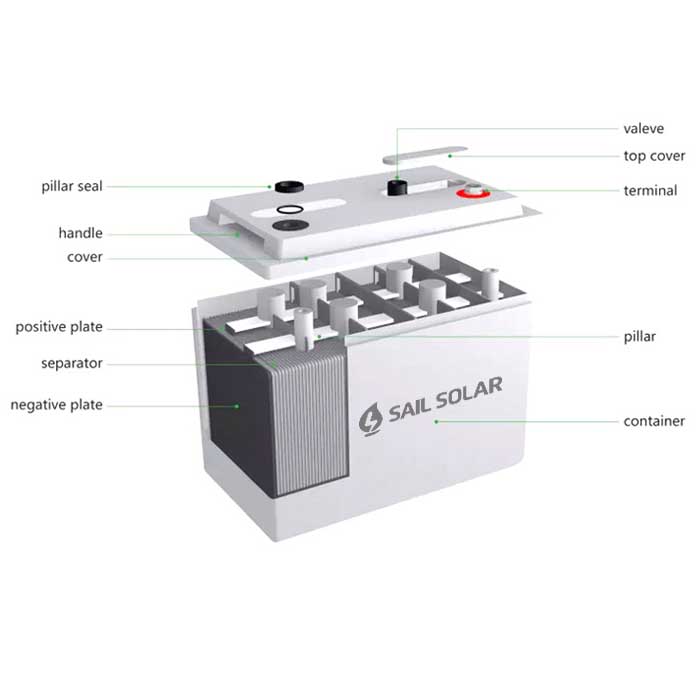

Structure and Principle
Gel battery is a kind of battery that uses sulfuric acid as the electrolyte and adds silica gel or other gel-like material between the electrode and electrolyte to fix the electrolyte and form a gel state.
Its positive and negative electrodes are both lead-based, with a large amount of active material and fiber structure inside. During the discharge process, the chemical reaction inside the battery produces electrons, thus forming a current.
Product Features
>Effective extension of battery life. The infusion of colloid increases the strength of the spacer, protects the pole plate, makes up for the defect that the spacer shrinks when it meets acid, so that the assembly pressure is not significantly reduced is one of the reasons for its ability to prolong battery life.
>Gel battery has strong resistance to overcharge and good performance in late discharge.
>Strong recovery ability under severe discharge. The colloid fills the gap between the separator and the pole plate, which reduces the internal resistance of the battery, and the charging acceptability can be improved.
>The self-discharge performance of gel battery is good, and the storage time of the battery can be extended more than 2 times under the same sulfuric acid purity and water quality
