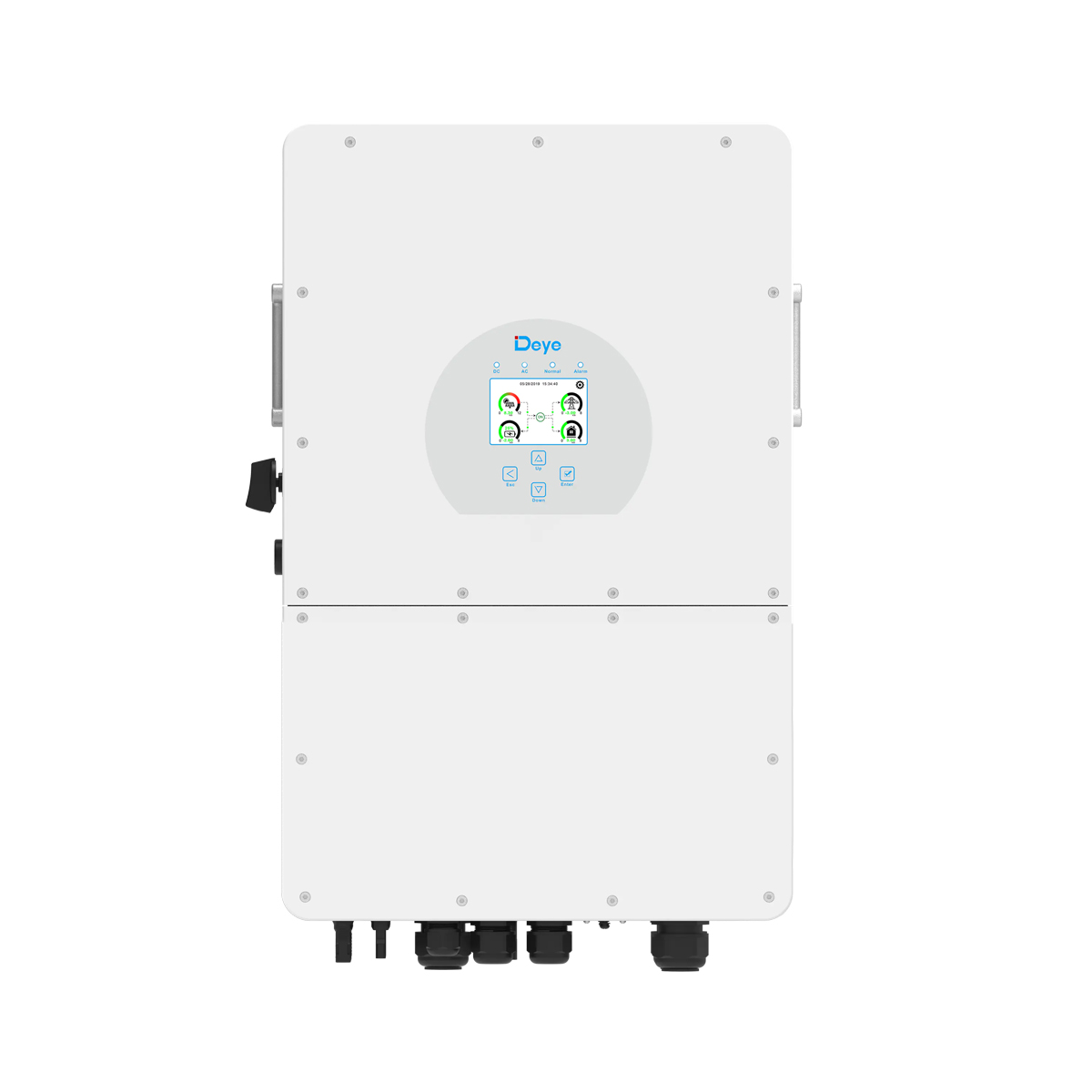

This series is Deye's initial exploration of industrial and commercial energy storage inverters. The open protocol allows the machine to better meet the needs of users in small industrial and commercial scenarios.
Brand Name :
DeyeModel ID :
SUN-20K-SG01HP3-EU-AM2Battery Type :
Lithium-ionMPPT Voltage Range（V） :
150-850Grid Connection Form :
3L+N+PECommunication Interface :
RS485/RS232/CANCabinet size（W*H*D） :
408*638*237Weight[kg] :
30.5Type Of Cooling :
Intelligent air coolingBattery Voltage :
160-700
Advantage:
● 100% unbalanced output, each phase AC couple to retrofifit existing solar system
● Max. 10 pcs parallel for on-grid and off-grid operation
● Support multiple batteries parallel, max. charging/discharging current of 50A with high voltage battery, higher effificiency
● 6 time periods for battery charging/discharging
● Support storing energy from diesel generator

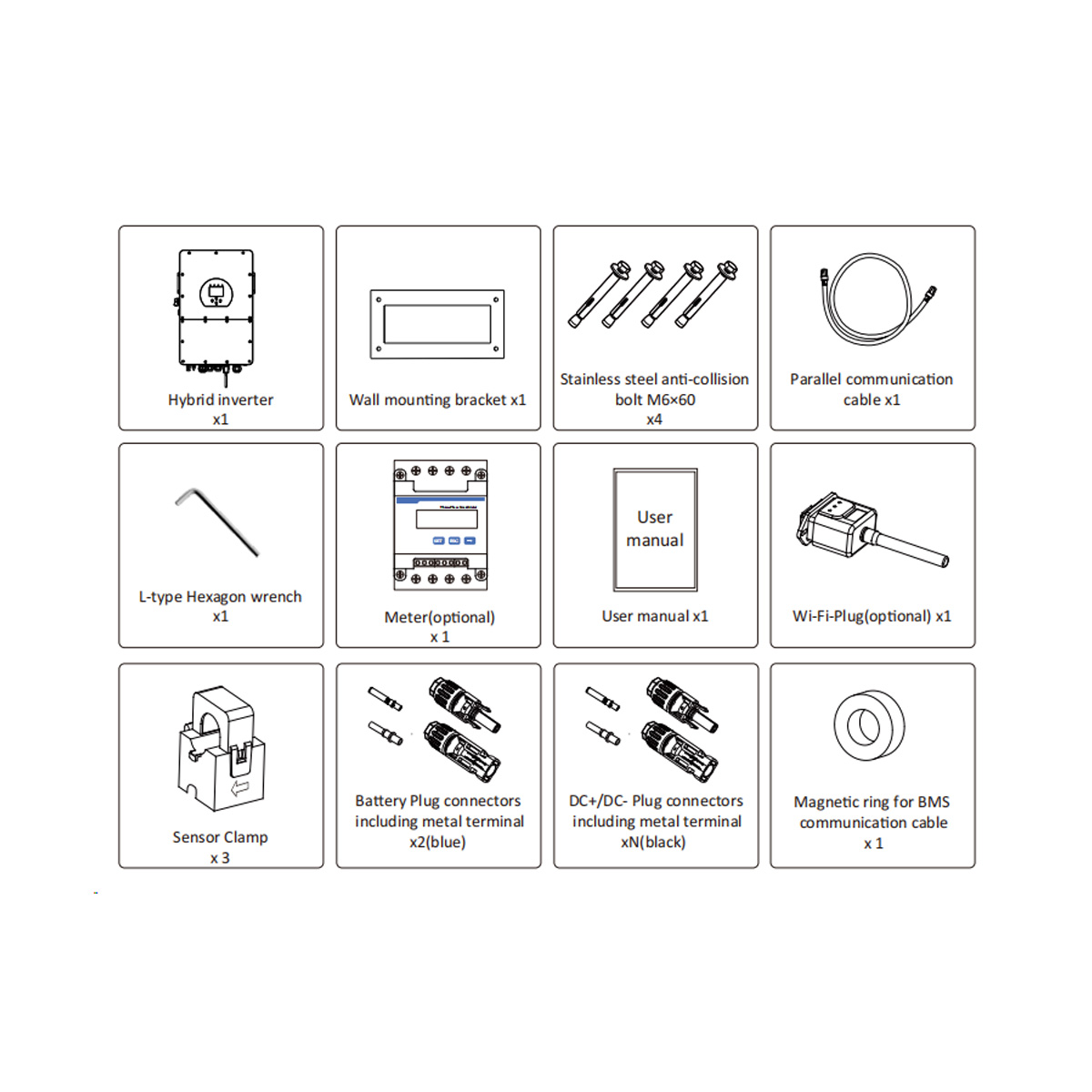

Parts List:
● Hybrid inverter x1
● Wall mounting bracket x1
● Stainless steel anti-collision bolt M6×60 x4
● Parallel communication cable x1
● L-type Hexagon wrench x1
● Meter(optional) x 1
● User manual x1
● Wi-Fi-Plug(optional) x1
● Sensor Clamp x 3
● Battery Plug connectors including metal terminal x2(blue)
● DC+/DC- Plug connectors including metal terminal xN(black)
●Magnetic ring for BMS communication cable x 1

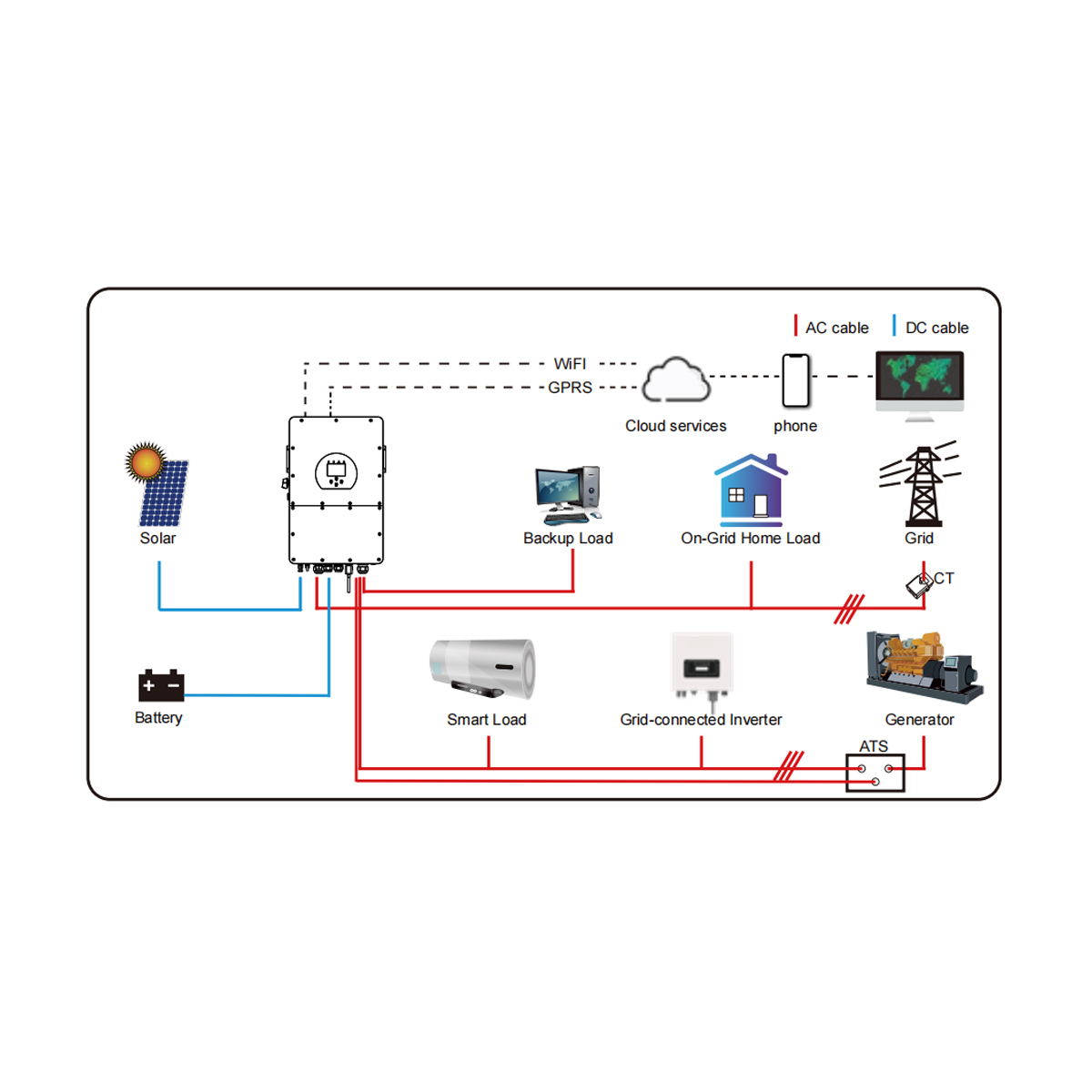

Working logic:
Under AC coupling, when PV generates electricity, it will give priority to powering the load, and the remaining electricity can be sold online or stored in the battery. When the PV power generation is not enough to support the load, the battery and PV will power the load together. When neither PV nor the battery can support the load, the grid will be connected, and the three will power the load together.
