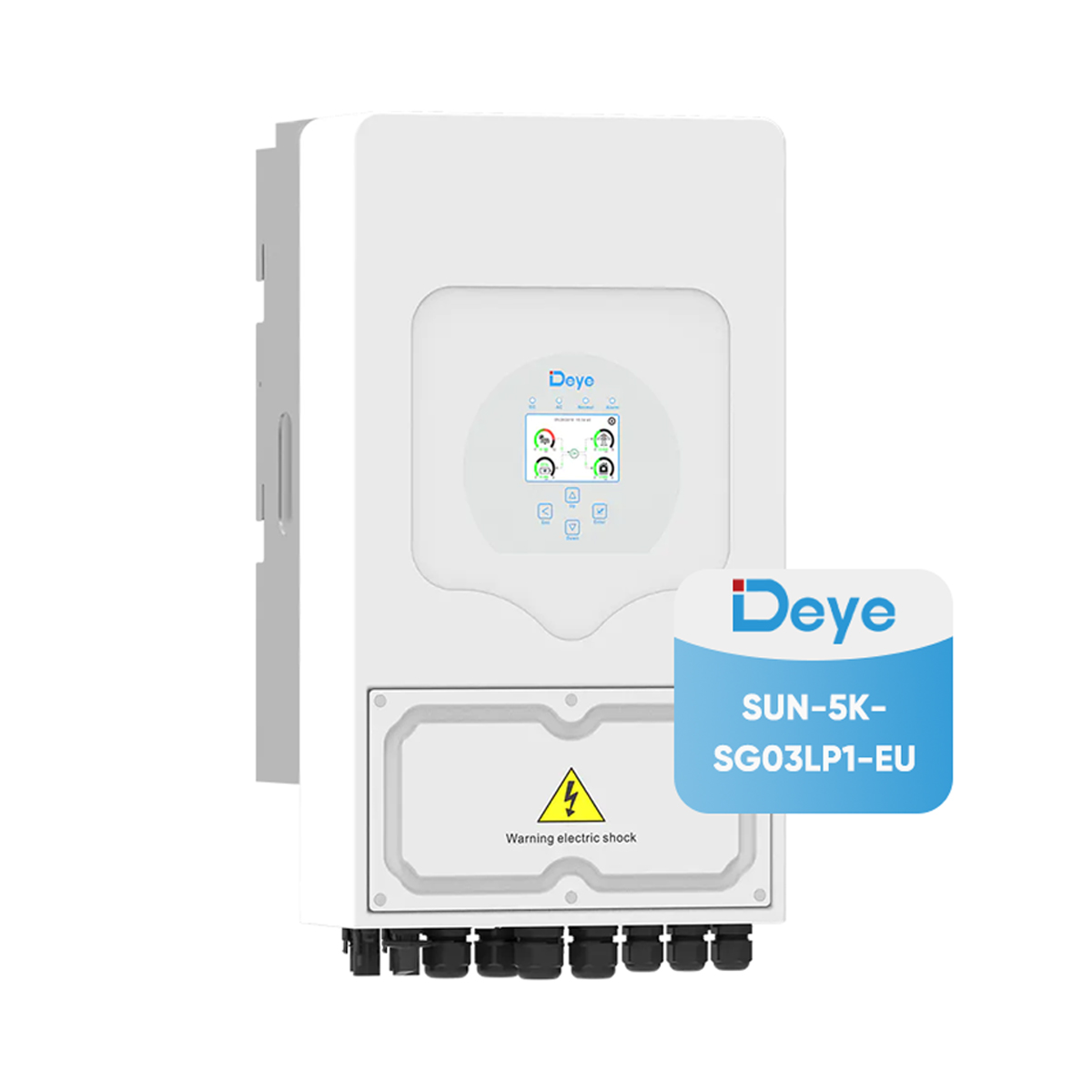

Deye Single-Phase Low Voltage Hybrid Solar Inverter 5kw

Deye single-phase hybrid inverter includes multiple models. The maximum power can reach 16kw, covering almost all application scenarios.

  • Brand Name :

    Deye
  • Model ID :

    SUN-5K-SG03LP1-EU
  • Battery Type :

    Lead-acid or Lithium-ion
  • Battery Voltage :

    40-60
  • Weight[kg] :

    25
  • Warranty :

    5 Years
  • MPPT Voltage Range(V) :

    150-425
  • Type Of Cooling :

    Intelligent air cooling
  • Grid Connection Form :

    L+N+PE
  • Communication Interface :

    RS485/RS232/CAN
  • Cabinet size(W*H*D) :

    330×580×232



SUN-3.6/5/6K-SG03LP1-EU

• Colorful touch LCD, IP65 protection degree

• AC couple to retrofifit existing solar system

Max. 16 pcs parallel for on-grid and off-grid operation

Support multiple batteries parallel

Max. charging/discharging current of 135A

Support storing energy from diesel generator

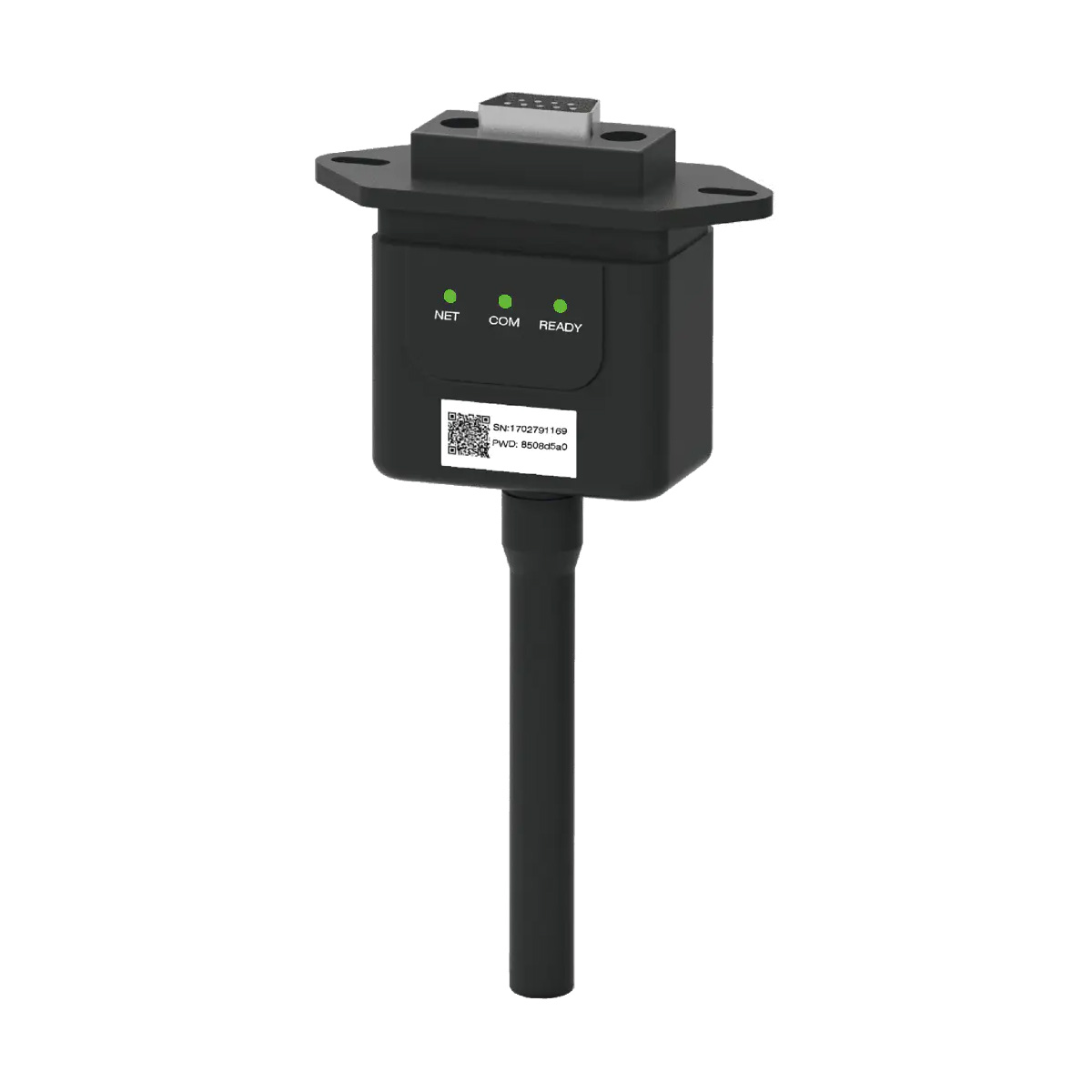

Stick Logger

External light indicator, logger status at a glance

Plug & play, pick power within inverter, no external power needed, easy to install

Independent from inverter to protect parts inside inverter, eliminate potential problems

IP65 water-proof design, resistant to bad weather, enhance stability

External design, easier to replace faulty equipment

End-user can monitor yields at any time with Deye Cloud

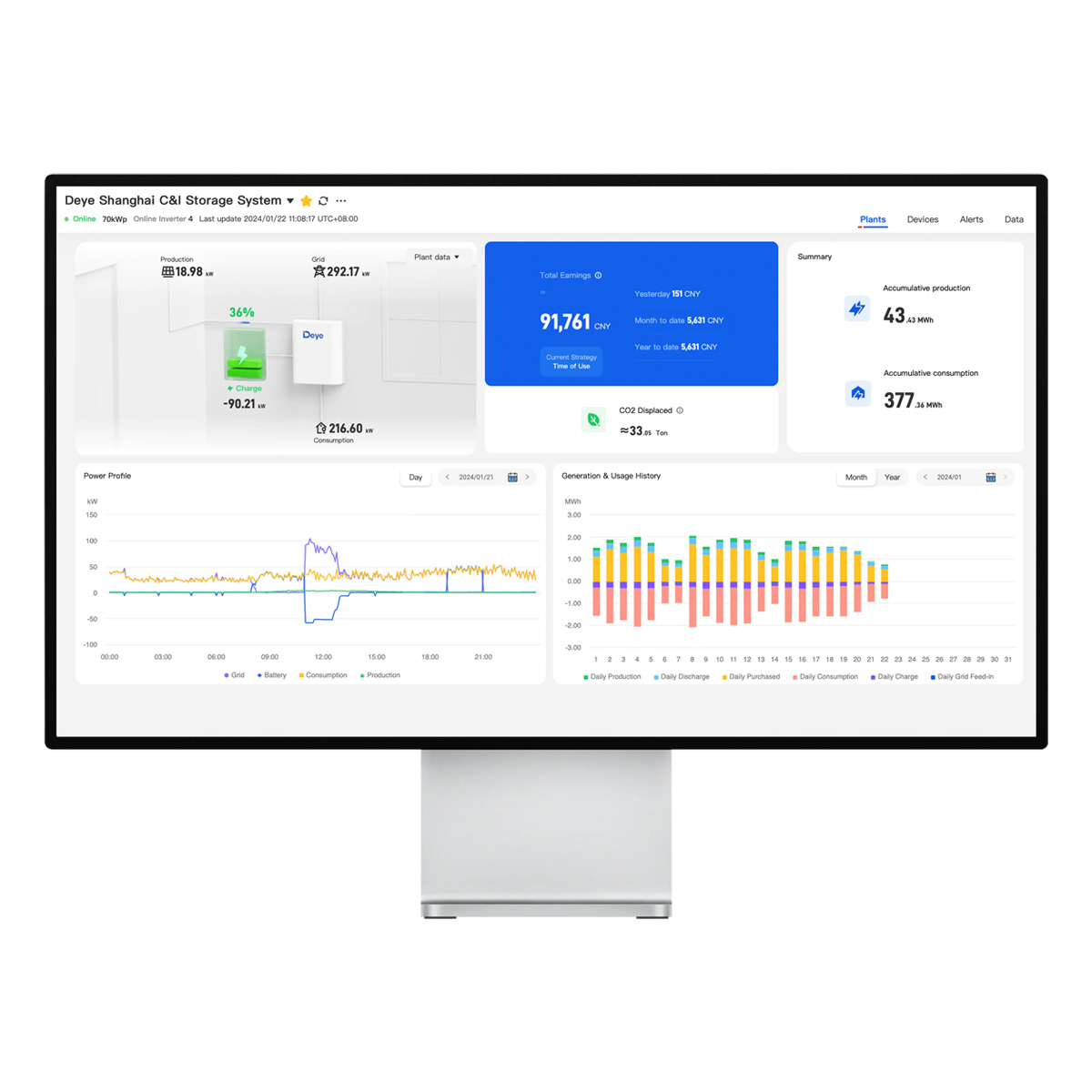

Deye Cloud

Open station supports one-click installation and registration

Problem support one-click dispatch and navigation

Safe operation, traceable logs, etc

Support full lifecycle data storage to ensure data security and reliability
