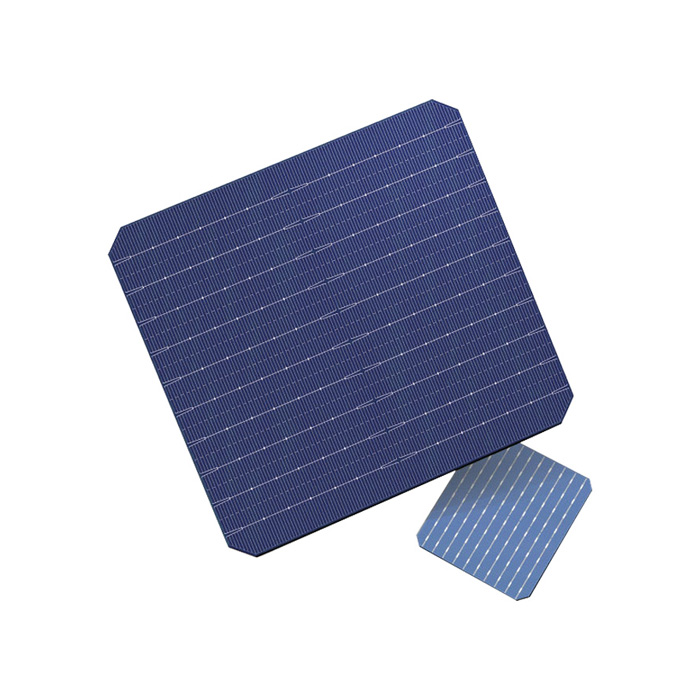

M10 Solar Cells Half Cult 10BB Solar PV Panel 395W 400W 405W 410W 415W 420W Monocrystalline PERC Multi Busbar Photovoltaic Solar Panel Module
Brand Name :
SAIL SOLARPower Range :
395~420WMax. Efficiency :
22.53%Weight :
20.5kgNumber of Cells :
108CellsDimensions of Module :
1722×1134×30mmGlass :
3.2mm coated tempered glassCable :
4mm2, 300mm in length, length can be customizedBacksheet :
WhiteWind/Snow Load :
5400Pa/2400PaPacking :
MC4Frame: :
Anodized aluminum alloy frameJunction Box: :

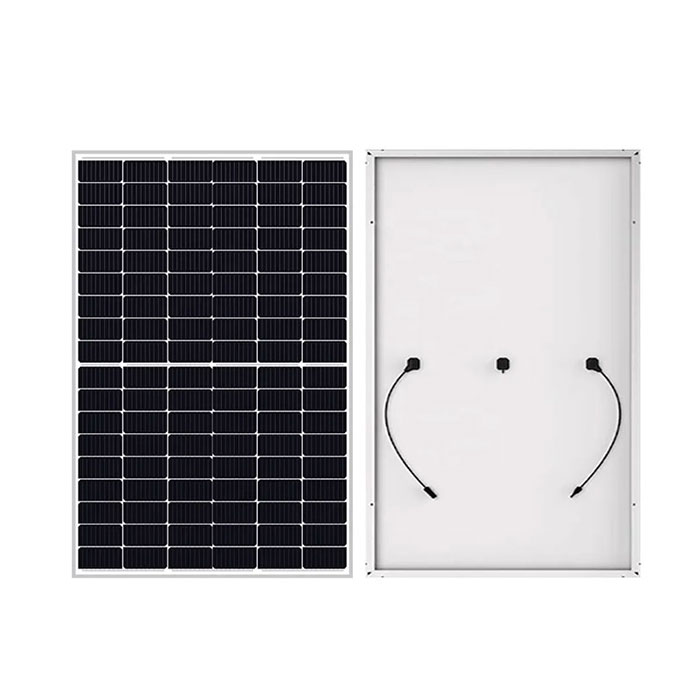

IP68, three diodes182mm PERC Half Cult 108Cells MBB Mono 395Watt ~420Watt Solar Panel
PERC (Passivated Emitter and Rear Cell) is currently becoming a new conventional technology for solar panel cells. PERC technology increases conversion efficiency by adding a dielectric passivation layer on the rear side of the cell, which has continuously refreshed its efficiency records in recent years. With continuous technological innovation, stable power strengths, and a well-developed technology, PERC has been widely recognized by customers all over the world.
High module conversion efficiency
Positive power tolerance (0~+5W) guaranteed
Uniform smart soldering increases the power and efficiency of the module, and improves the power load capacity.
54 half cell design, fully considering the size and weight of modules in distributed applications.
Smart module packaging solutions are used to achieve high reliability, low-cost transportation and logistics.
-40℃- 85℃ working temperature, outstanding durable ability in sands, water field, high temperature, high humidity and alpine harsh environment.
| Module ID | SAS395M-108H | SAS400M-108H | SAS405M-108H | SAS410M-108H | SAS415M-108H | SAS420M-108H |
| Maximum Power (Pmax/W) | 395 | 400 | 405 | 410 | 415 | 420 |
| Maximum Power Voltage (Vmp/V) | 30.84 | 31.02 | 31.23 | 31.45 | 31.46 | 31.82 |
| Maximum Power Current (Imp/A) | 12.81 | 12.90 | 12.97 | 13.04 | 13.12 | 13.20 |
| Open Circuit Voltage (Voc/V) | 36.98 | 37.07 | 37.19 | 37.32 | 37.45 | 37.58 |
| Short Circuit Current (Isc/A) | 13.70 | 13.79 | 13.87 | 13.95 | 14.02 | 14.10 |
| Module Efficiency (%) | 20.23 | 20.48 | 20.74 | 21.00 | 21.25 | 21.51 |
| Power Output Tolerance (W) |
0~+5W | |||||
| Temperature Coefficient of Isc |
+0.048%/°C | |||||
| Temperature Coefficient of Voc |
-0.270%/°C | |||||
| Temperature Coefficient of Pmax | -0.350%/°C | |||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
