Brand Name :
JAPower Range :
410W-440WMax. Efficiency :
440WWeight :
30.5KGNumber of Cells :
144Dimensions of Module :
1762*1134*30mmGlass :
2.0mm/2.0mmCable :
Portait:200mm(+)/300mm((-).Landscape:1500mm(+)/1500mm(-)Wind/Snow Load :
5400Pa/2400PaPacking :
36 pc/Pallet 936 pcs/40 HQ containerFrame: :
30mmJunction Box: :
IP68 Rated

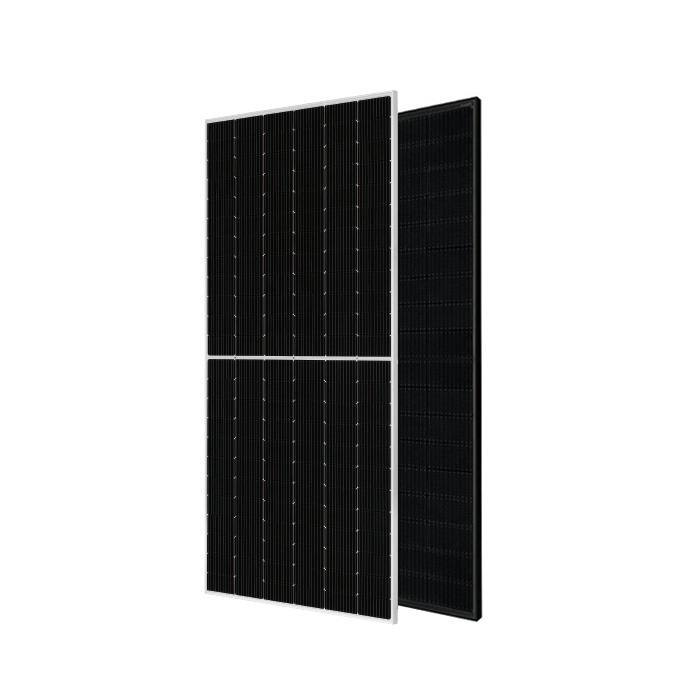

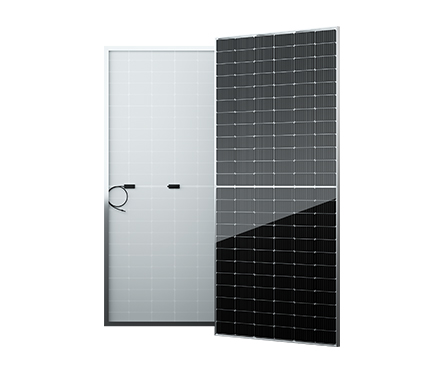

Deep Blue 3.0 series with a wide range of modules designs to suit various application scenarios,
satisfying the diverse needs of customers is assembled 11BB PERC cells.It offers the advantages of higer power output,reducing shading effect,lower risk of hot pot,as well as improve sun energy conversion.And the series of the solar panel is wafer size,and cell efficiency >23.7%
JAM 54S30 LR
JAM 54D30 GB
JAM 54S31 GR
JAM 54S30 GR
JAM 54S31 MR
JAM 54S30 MR
Key Features:
Multi-busbar Technology:
MBB multi-busbar technology improves the uniformity of cell stress distribution by increasing the number of busbars, thereby improving conductivity and increasing conversion efficiency.
Endurance in Extreme Environments:
Subject to rigorous quality control and testing, JA Solar modules exhibit outstanding weather resistance and corrosion resistance. The components excel in extreme weather conditions, such as strong winds and heavy snow, ensuring long-term stable operation.
