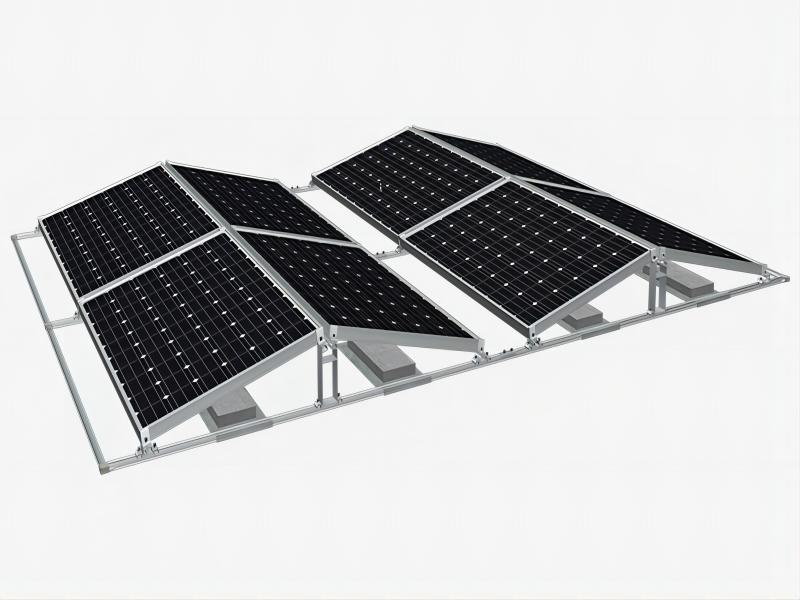

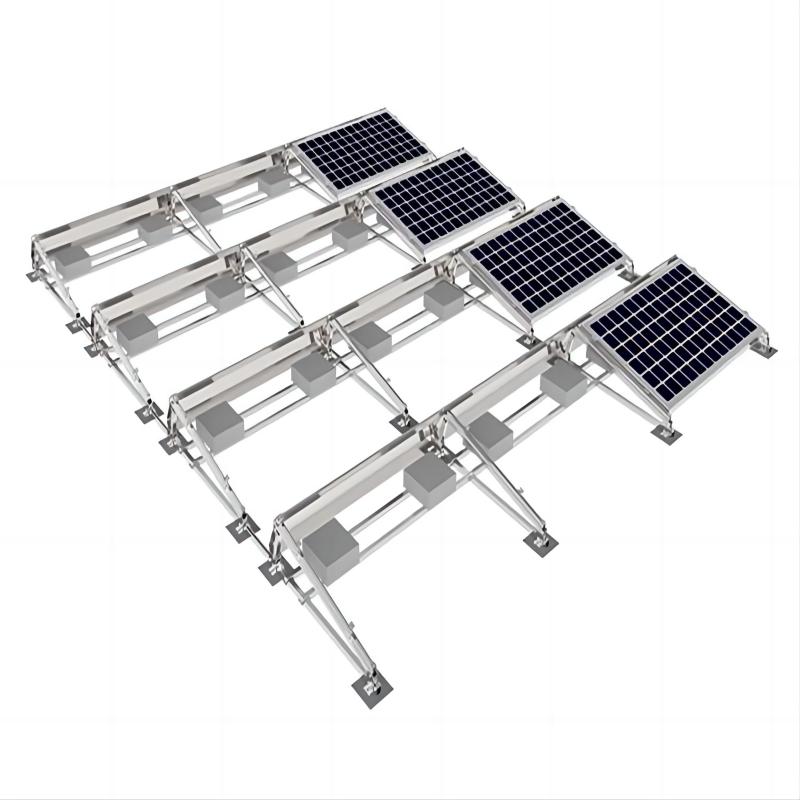

Ballast tripod flat rooftop mounting system is a type of solar panel mounting system that is designed for flat rooftops. This system uses a tripod structure that is weighted down with ballasts to provide a stable and secure foundation for the solar panels.
Brand Name :
Sail SolarInstallation Site :
Open Field Area_Flat rooftop or GroundAvailable Panel :
Frame and frameless panelsMain Material :
Al6005-T5 for aluminum profiles and clamps.Stainless steel for fasten bolt and nut.Fixed Parts Material :
Stainless steelMax Wind Load :
< 60m/sMax Snow Load :
< 80cmWarranty/ Duration :
12 years/ More than 25 yearsDesign Standards :
AS/NZS 1170 &JIS C 8955-2011The Ballasted Bracket for flat concrete rooftop is perfect for residential or commercial flat rooftops, withstand heavy wind speed.
The system is designed to require only one tool and can be quickly fixed with only a few components. Various configurations of solar panels can be built for south-facing roofs, north-south roofs and east-west facing roofs to achieve a premium solution.
Features:
>Reduce the installation time and labor costs.
>Makes it a versatile solution for a variety of flat rooftop applications.
>Pre-assembled Components Save Onsite Installation Time.
>Easy and quick installed by using our bolts and nuts.

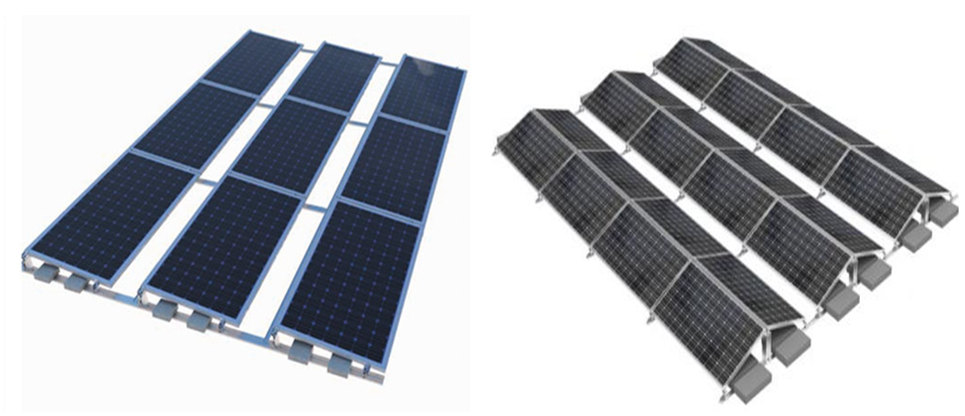

Single Row Solution Double Rows Symmetrical Solution
When selecting a ballast mounting system, consider the following factors:
--Weight Requirements: Determine the weight required to hold the panels securely in place based on wind loads and other environmental factors.
--Compatibility: Make sure the system is compatible with the solar panels you plan to install.
--Installation simplicity: Look for a system with a simple installation process and easy-to-use components.
--Structural Integrity: Verify the system's structural integrity and resistance to weather conditions such as high winds or snow loads.
--Comply with legal regulations: Make sure the system complies with local building rules.
Remember to consult with a professional solar installer or engineer to evaluate your specific requirements and design a ballast mounting system that meets your needs.

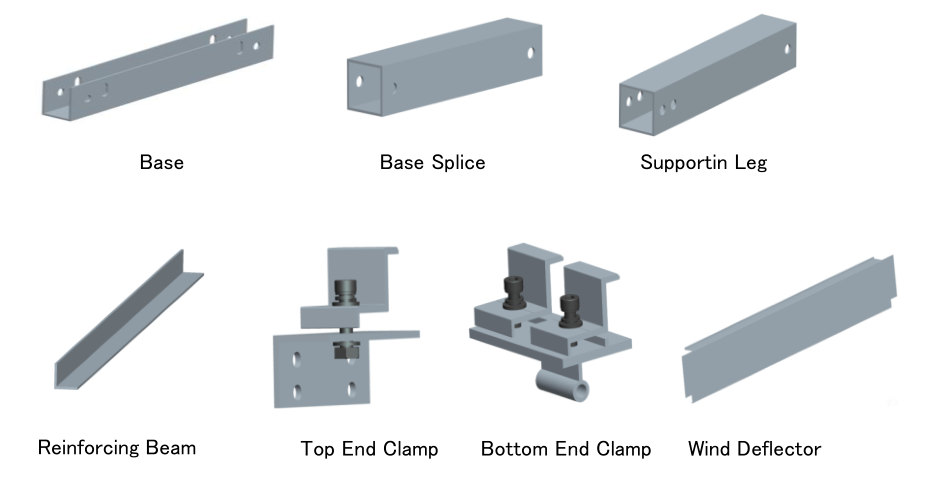

Components List

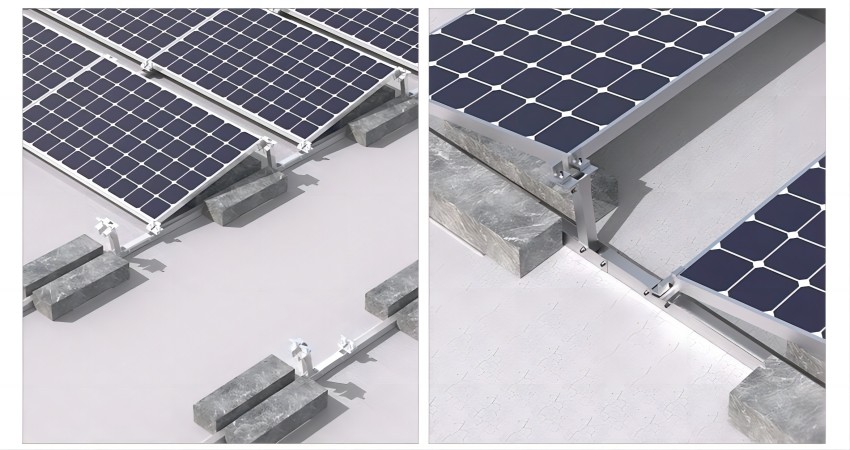

Fix the panel with clamps Put the concrete ballast on the Angle Aluminum Base
Installation: The mounting rails are attached horizontally to the roof, and they are normally secured using ballast blocks positioned strategically to evenly distribute the weight.
The solar panels are affixed to the mounting rails using end and mid clamps with the electrical wiring between the panels is also connected.
