SAIL SOLAR use growatt on grid inverter give your commercial and industrial more power choices for three phase on grid solar panel system
Brand Name :
GrowattModule ID :
MAX 50-80KTL3 LV, MAX 100-150KTL3-X LV/MV etcOutput Voltage :
380V or 480VOutput Frequency :
50Hz/60HzSelfpower consumption :
< 1WSize: :
860/600/300mmWeight :
86kgOperating temperature :
–25 °C ~+60 °CAltitude :
4000mProtection degree :
IP65,IP66Warranty :
5 years(10 years is Optional)Growatt Commercial and Industrial Use 15KW – 253KW On Grid Solar Inverter

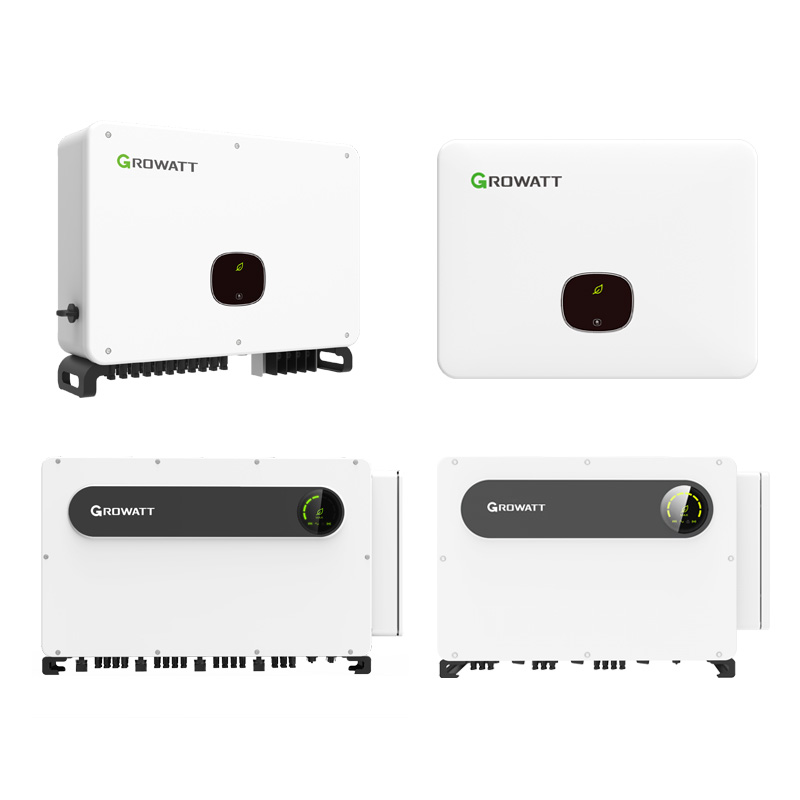

Product Series
Growatt commercial and industrial PV on grid inverter have following four series,
MID 11-30KTL3-XH
MID 15-25KTL3-X
MID 25-40KTL3-X
MID 30-50KTL3-X2
MAC 50-70KTL3-X LV/MV
MAX 50-80KTL3 LV
MAX 100-150KTL3-X LV/MV
MAX 100-150KTL3-X2 LV/MV
MAX 185-253KTL3-X HV
Feature:
Easy and User Friendly
High Yields
Safety and Reliability
Smart Monitoring Platform
ShinePhone
>System monitoring APP for users
>One APP for all Growatt products
>Simple WiFi configuration
ShineServer
>Web version monitoring platform for users
>Self-consumption and energy trend display
ShineTools
>Lite version O&M APP
>Local commissioning and local firmware upgrade
OSS
>Powerful O&M platform for installers and distributors
>Online smart I-V curve diagnosis

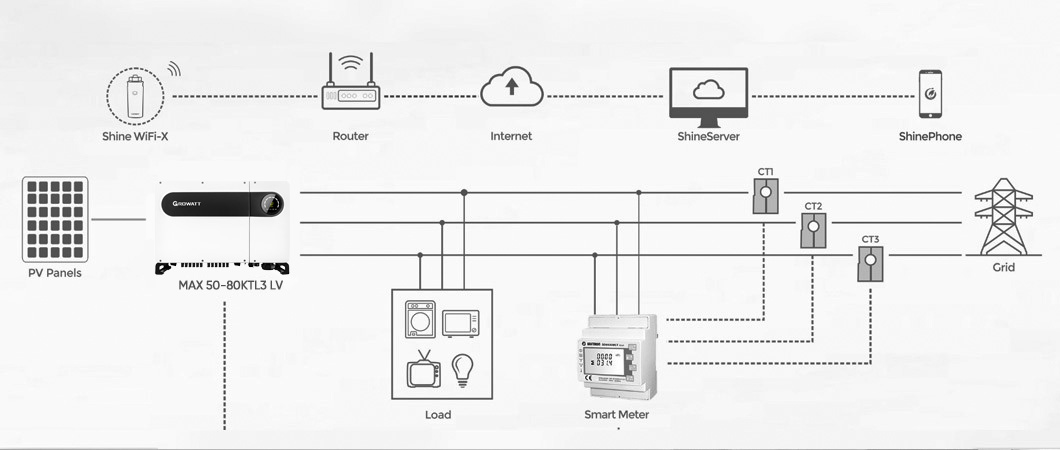

Inverter Connection Chart
This diagram shows clearly the working principle of on-grid system, which is a business model of distributed photovoltaic power generation.
Growatt on-grid inverters can convert the DC power produced by PV modules into AC power for household, commercial or industrial loads. A smart meter can be installed between the inverter and the grid to count the photovoltaic power directly consumed by the user and the power transmitted to the grid, or the reverse power is measured separately and settled at the prescribed on-grid electricity price. Or if you do not need to sell electricity to the grid, but only realize "spontaneous self-use", you need a meter with CT function.
In the meanwhile, Growatt on-grid inverter has Smart Energy Manager which is designed for solar system self-consumption monitoring and export limitation. It can monitor the solar system, and show the PV production, load consumption, import or export to grid, show the system self-consumption rate on the monitoring platform.
