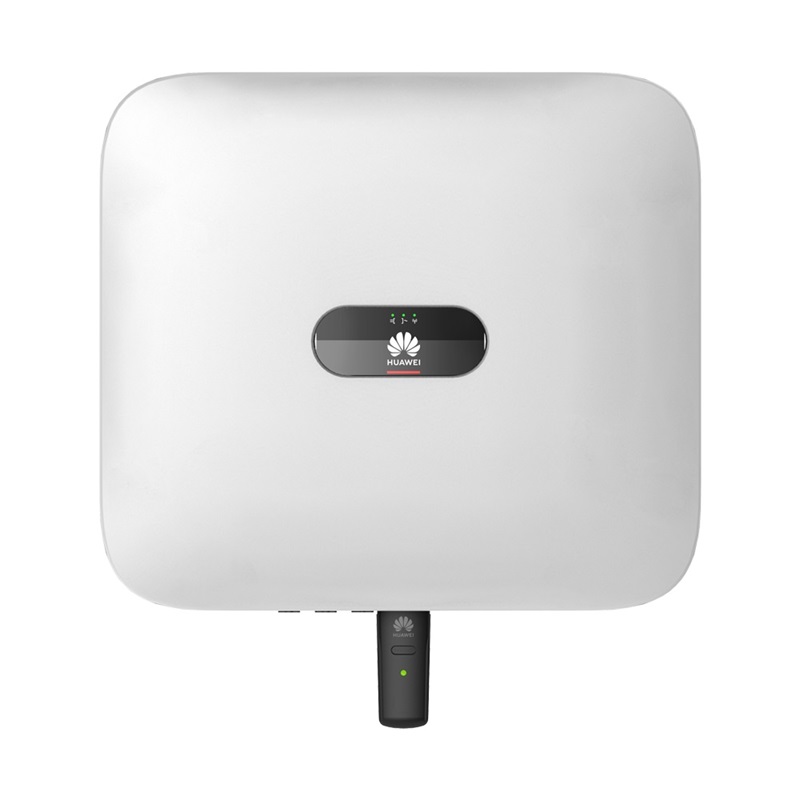

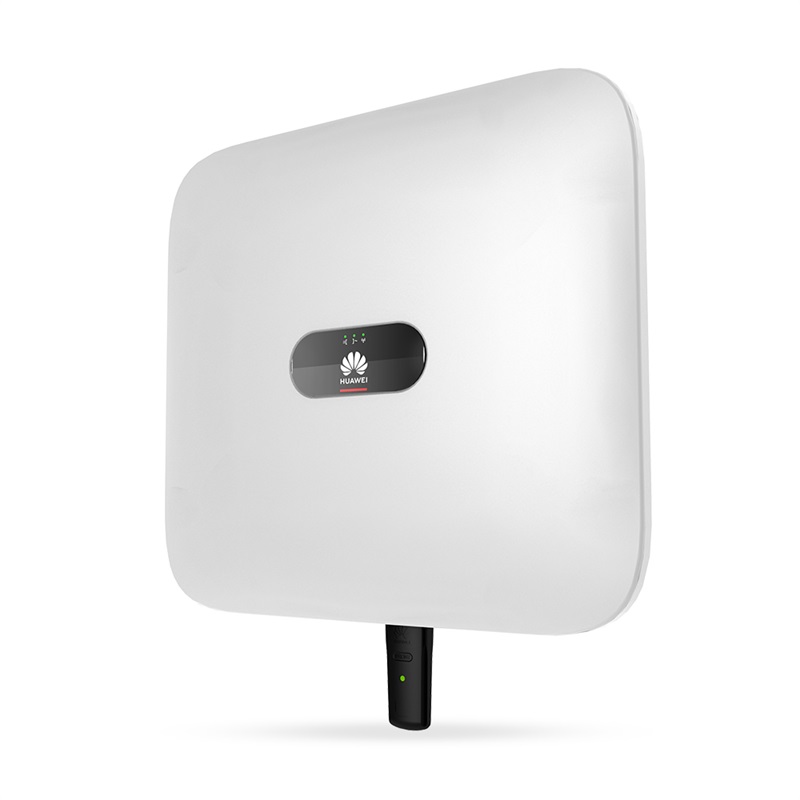

Powered by Huawei's self-developed AI and smart cloud, this series of products has accurately positioned active arc protection functions. With Huawei SUN2000 series optimizers, power generation can be increased by up to 30%. Flexible communication, optional WLAN, Ethernet, 4G communication.
Brand Name :
HuaweiModel ID :
SUN2000-3/4/5/6/8/10KTL-M1Euro Efficiency :
98.1%Max. Efficiency :
98.6%Output Voltage (V) :
220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PEOutput Frequency :
50 Hz / 60 HzSize: :
525*470*146.5 mmOperating temperature :
-25 ~ +60 °C (-13 °F ~ 140 °F)Weight :
17KGAltitude :
4,000 m (13,123ft.) (Derating above 2000m)Protection degree :
IP65Warranty :
5 years(10 years is Optional)
Product Features
1. AI powered arcing protection
2. Compatible to SUN2000-450W-P optimizer
3. Battery ready by direct Plug & Play, no extra device or any retrofit required
4. A 5KTL inverter allows 5KW full power AC output plus 5KW full power battery charge
5. High efficiency inverter topology, Max. Efficiency 98.4%
Product Advantages
1. More Energy，String-level Management
2. Simple O&M，Smart IV Curve Dignosis Supported MBUS IP66 Protection
3. Safe & Reliable，Arc Fault Protection Design Surge Arrester for both DC and AC

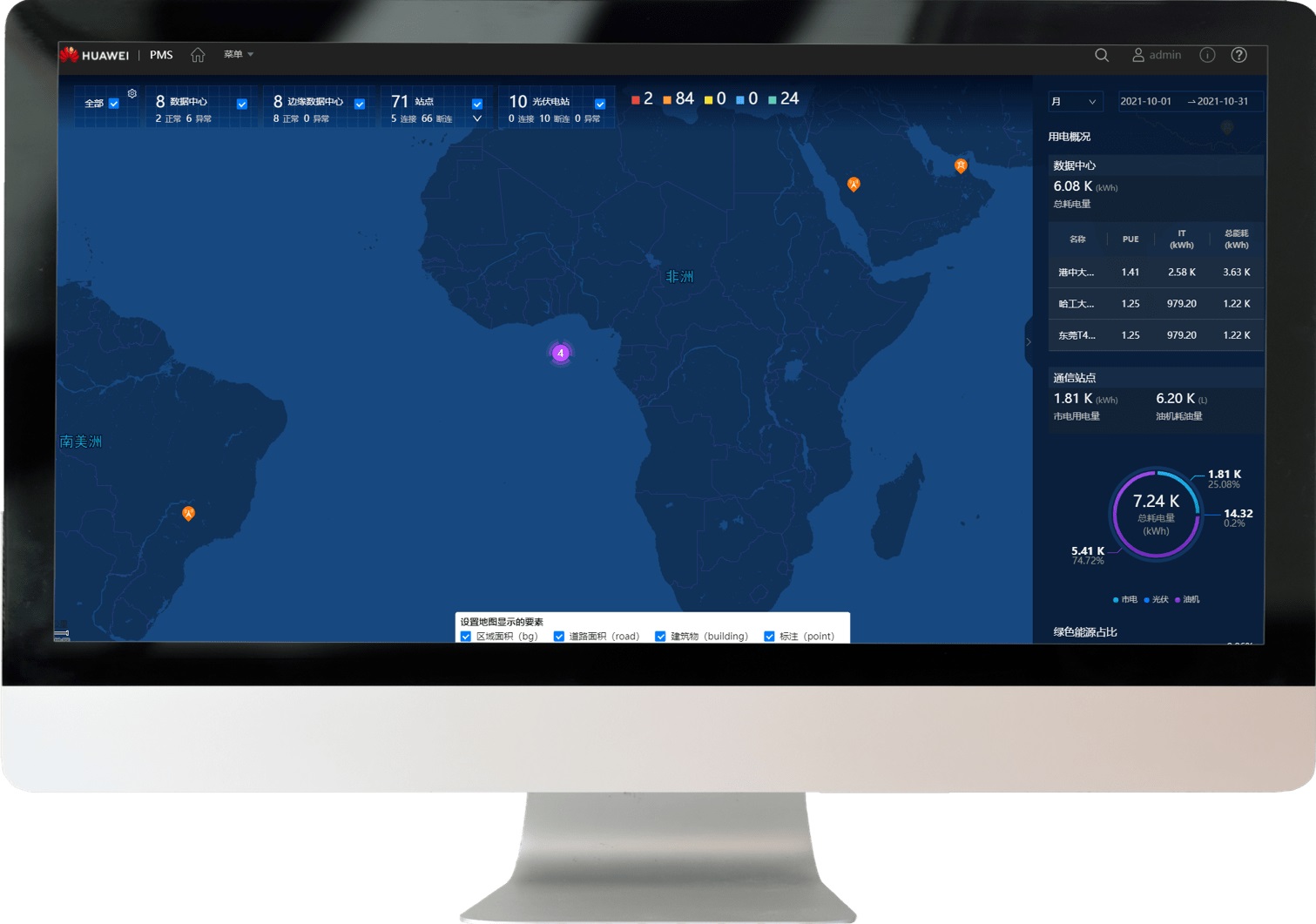

Smart Platform
1. Better experience, one APP completes local debugging and remote website building
2. Visual management, full visualization of real-time and historical data at the power plant level and equipment level
3. Intelligent operation and maintenance, dispatch of work orders with one click, and one-click navigation for site search
