LONGi new generation HPBC cell technology opens a new chapter in the mass production of high-efficiency cells and continues to lead the reform of the industry.
The efficiency of LONGi HPBC cells exceeds 25.5%.The efficiency of HPBC+ cells exceeds 25.8%.
Brand Name :
LongiPower Range :
415-600WpMax. Efficiency :
22.6%Weight :
27.5kgNumber of Cells :
144 CellsDimensions of Module :
2278×1134×35mmGlass :
Single glass, 3.2mm coated semi tempered glassBacksheet :
WhiteCable :
4mm², 400mm in length, length can be customizedWind/Snow Load :
5400Pa/2400PaPacking :
31 pcs/palletFrame: :
Anodized aluminum alloy frameJunction Box: :
Split junction box, IP68
Explorer
Hi-MO X6 Explorer series is classic, but with revolutionary changes.
Unique high-efficiency HPBC cell structure sets new standard for PV technology.
Monofacial:
LR5-72HTH 565-585M
Black Frame:
LR5-54HTD 420-440M
LR5-66HTH 520-540M

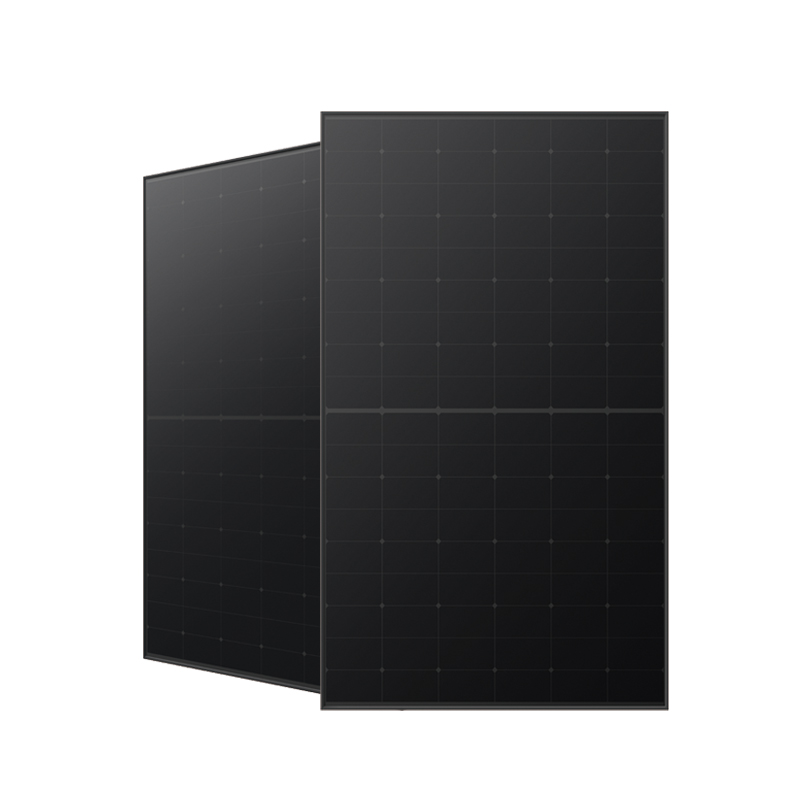

All Black:
LR5-54HTB 415-435M
Hi-MO X6 has been greatly upgraded in appearance, performance, reliability and intelligent optimization function with HPBC high-efficiency cell.In terms of appearance, Hi-MO X6 simplifies the complexity and redefines the aesthetic concept of photovoltaic modules.In terms of performance, Hi-MO X6 greatly improves the photoelectric conversion capacity of the module by comprehensive optimization.In terms of reliability, HPBC cell adopts full back welding technology to effectively improve the resistance to micro cracking of modules.
Scientist
Hi-MO X6 Scientist series focuses on highest efficiency with HPBC Pro cell to meet the requirements of high performance, main mono module is 54-cell and 72-cell, all black power up to 440w of 54-cell.

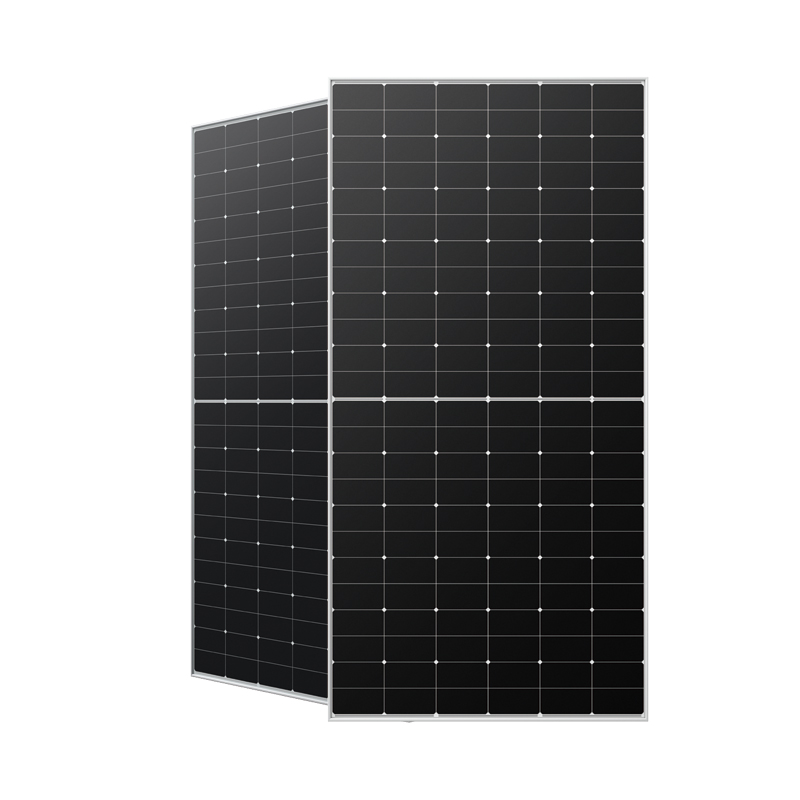

Monofacial:
LR5-54HTH 435-450M
LR5-72HTH 580-600M

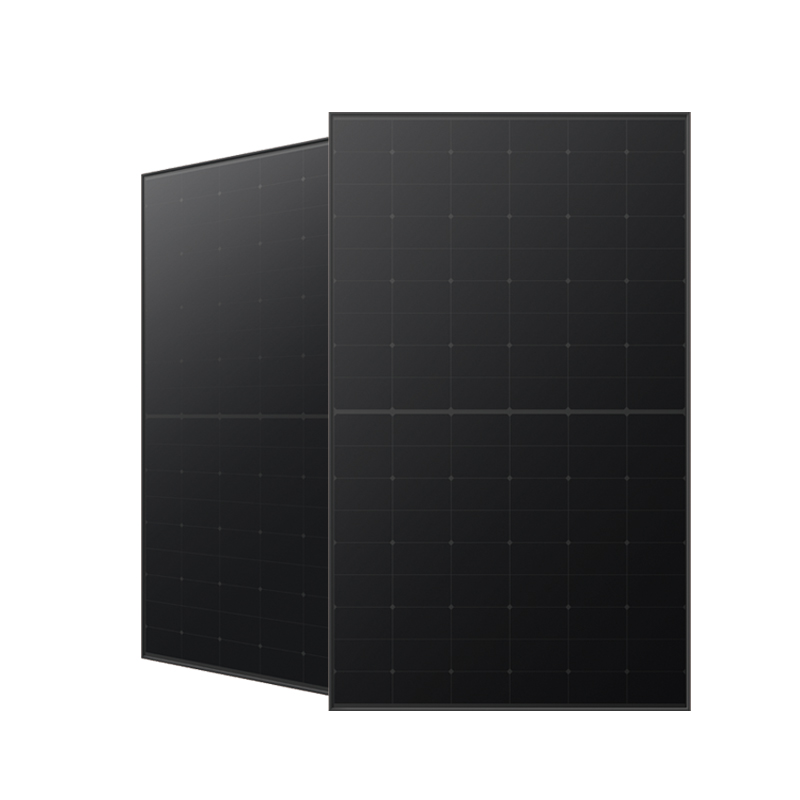

All Black:
LR5-54HTB 430-440M
At the same time,Hi-MO X6 can carry out active safety and intelligent optimization through pre-made optimizer,while the new anti-dust accumulation design improves power generation yield and reduces cleaning frequency and cost.
Guardian
Hi-MO 6 Guardian series carries out active safety and intelligent optimization management through prefabricated intelligent optimizer.
The Guardian series offers smarter performance in several key areas, such as intelligent monitoring, quick shutdown in case of emergency to protect people and assets, increased capacity and intelligent and accurate analysis algorithms that enable real-time optimization. LONGi explained that the independent control and real-time optimization functions of each module increase power generation by 5 percent to 30 percent.

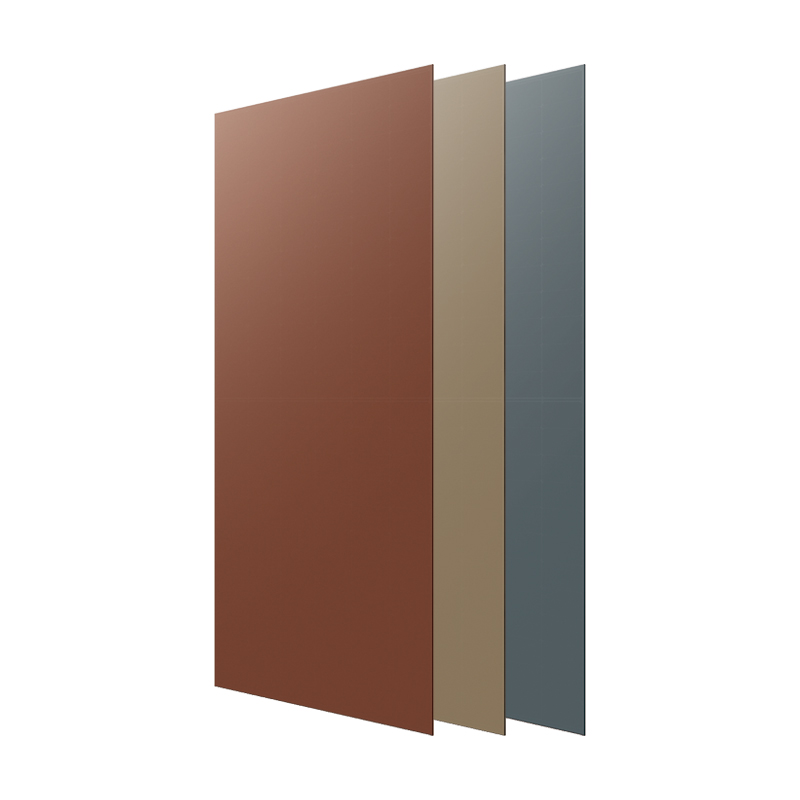

Artist
Hi-MO 6 Artist series focuses on Colored design, which is more applicable to landmark buildings and industry benchmark projects.
The Artist series merges technology and art in an innovative solution, which breaks with the traditional black PV models with an eye-catching design that is perfect for landmark buildings and industry benchmark projects. LONGi noted that it is perfect for architectures like sports stadiums, cultural venues, fairgrounds and residences.
Product Parameter(STC)
| Module Type | LR5-72HTH-565M | LR5-72HTH-570M | LR5-72HTH-575M | LR5-72HTH-580M | LR5-72HTH-585M |
| Maximum Power (Pmax/W) | 565 | 570 | 575 | 580 | 585 |
| Open Circuit Voltage (Voc/V) | 51.76 | 51.91 | 51.70 | 52.06 | 52.21 |
| Short Circuit Current (lsc/A) | 14.01 | 14.07 | 14.14 | 14.20 | 14.27 |
| Voltage at Maximum Power (Vmp/V) | 43.61 | 43.76 | 43.91 | 44.06 | 44.21 |
| Current at Maximum Power (Imp/A) | 12.96 | 13.03 | 13.10 | 13.17 | 13.24 |
| Module Efficiency(%) | 21.9 | 22.1 | 22.3 | 22.5 | 22.6 |
| Operational Temperature | -40°C ~ +85°C | ||||
| Power Output Tolerance | 0~3% | ||||
| Temperature Coefficient of lsc | +0.050%/°C | ||||
| Temperature Coefficient of Voc | -0.230%/°C | ||||
| Temperature Coefficient of Pmax | -0.290%/°C | ||||
AUTHORIZATION
LONGi Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.
We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
