Goodwe On-Grid Solar Invertes. SDT G2 Series is the one of the best options for residential and commercial segments ,thanks to whose technical strengths that make it one of the most efficient in the market .Three phase 400V to meet the needs of users in most countries and MPPT maximum voltage 1100V let you rest assured.
Brand Name :
GoodweModule ID :
GW4K-DT,GW5K-DT,GW6K-DT,GW8K-DT,GW10K-DT,GW12K-DT,GW15K-DT,GW20K-DTOutput Voltage :
400V ,3L/N/PEOutput Frequency :
50Hz/60HzSelfpower consumption :
<1WSize: :
354*433*147mm (4K-6K) ,415*511*175mm (8K-10K), 415*511*198mm (12K-20K)Weight :
15~26KGOperating temperature :
–25 °C ~+60 °CAltitude :
3000mWarranty :
5 yearsProtection degree :

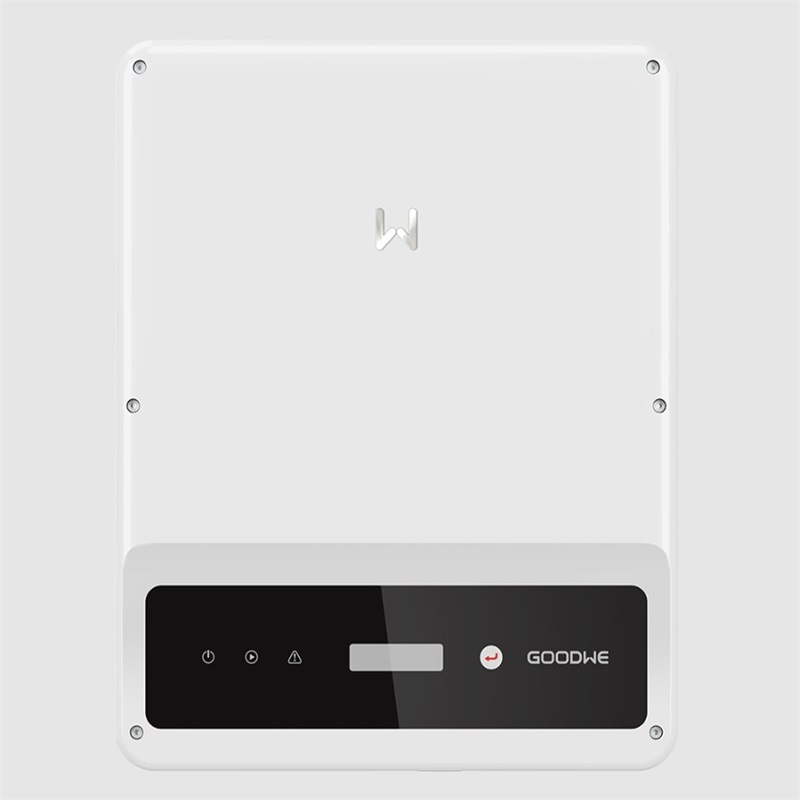

IP65Goodwe SDT G2 Series 4K-20K Three Phase 400V
Goodwe SDT Series is a Three-Phase(Triphase) solar inverter with 150% DC input oversizing and 110% DC output overloading .Its max conversion efficiency is up to 98.3% ,also have a arc-fault circuit interrupter optional at the same time .

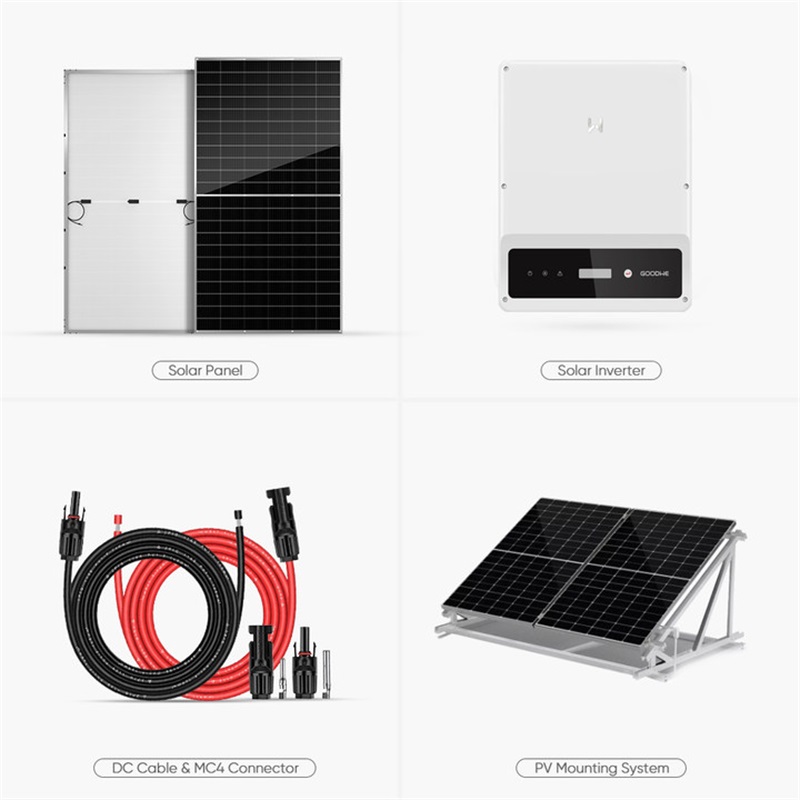

Connect with panels and the national network

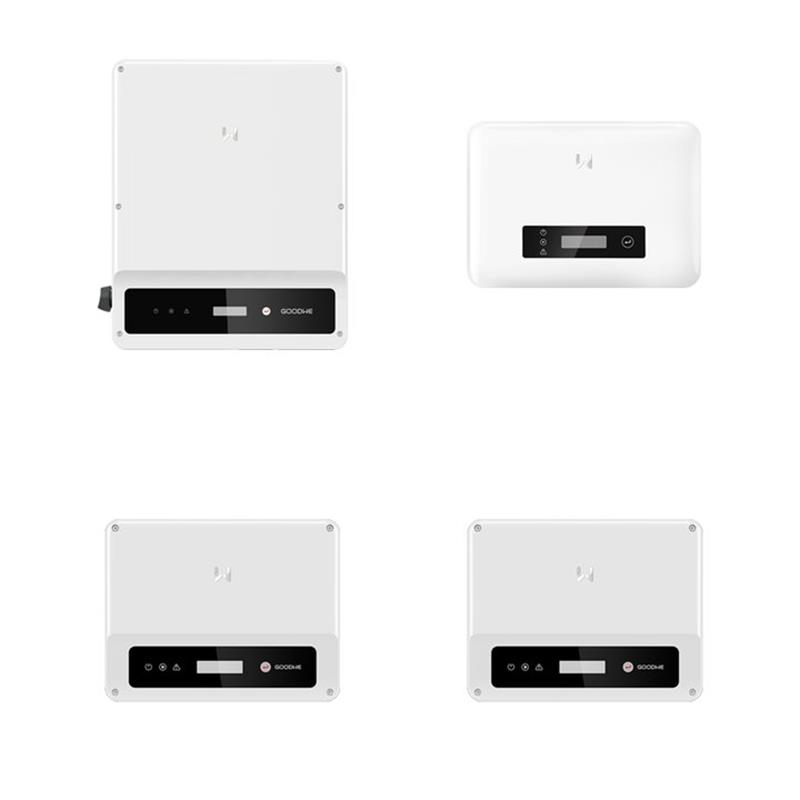

A wide range of single- and three-phase grid-tied inverters are provided to meet household needs for reliable and sustainable power generation. Being light-weight, highly-efficient and low-cost, GoodWe residential PV inverters are designed to be simple to install, operate, and maintain, so as to ensure a quick return on investment (ROI). Simple configuration and clear wiring make it easy to install.
Technicial Data | GW4K-6K SDT-20 | GW8K-12K SDT-20 | GW12KLV SDT-20 | GW15K-20K SDT-20 |
Max Output Power | 4.4K/5.5K/6.6K | 8.8K/11K/13.2K | 13.2K | 16.5K/18.7K/22K |
Max Input Voltage | 1000V | 1100V | 800V | 1100V |
Max input Current per MPPT(A) | 12.5 | 12.5 | 12.5 | 12.5 |
Weight(KG) | 15 | 20.5 | 23.5 | 26 |
Nominal Output Voltage(V) | 400, 3L / N / PE | 380 / 400 / 415, 3L / N / PE | 220/127,3L/N/PE | 380 / 400 / 415, 3L / N / PE |
