Designed with dual wall insulation, electron beam cross-linked, the PV cable has excellent resistance to UV, water, ozone, fluids, salt, general weathering, anti-abrasion. XLPO material is used for insulation and sheath, so that the cable can resist sunlight and can also be used in high and low temperature environments.
Product Name :

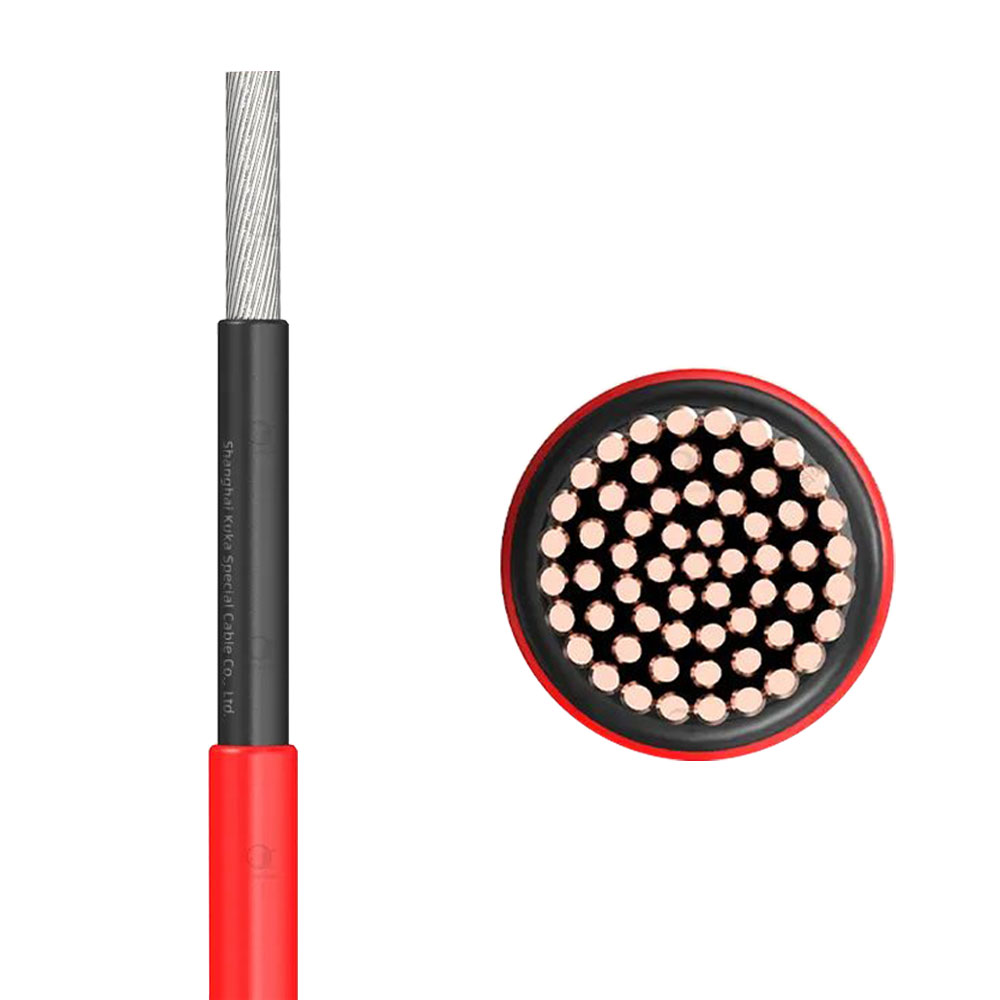

TUV Single Core PV1-F CableConductor :
Tinned copper, Class 5, according to IEC 60228Insulation :
XLPO halogen freeJacket :
XLPO halogen freeInsulation Color :
BlackJacket Color :
Black Or RedService Life :
25 yearsWarranty :
5 years
| Parameter | |||
| Electrical Characteristics | Mechanical Characteristics | ||
| Rated Voltage | 0.6/1KVAC, 1000DC | Bending radius |
Fixed: 4 ×Φ； Flexing:5xΦ |
| Max. permitted voltage | 1500VDC | Temperature Range | -40 °C ~ +120 °C |
| Insulation resistance | 1000ΜΩ/KM | Flame-resistant test | EN 60332-1-2 |
| Test Voltage |
AC 6.5kV, 50Hz, 5 min |
UV resistance Test | EN50289-4-17 |
| Standard | PV1-E 2 PfG 1169 | ||
Photovoltaic cables are single-core flexible cables specially designed for solar power distribution systems, widely used in photovoltaic system power stations, junction boxes, connectors, inverters, combiner boxes and other fields.
| Parameter | |||
| Electrical Characteristics | Mechanical Characteristics | ||
| Rated Voltage | 1.0/1KVAC, 1500DC | Bending radius |
Flexing:4xΦ; Flexing:5xΦ |
| Max. permitted voltage | 1800VDC | Temperature Range | -40 °C ~ +120 °C |
| Insulation resistance | 1000ΜΩ/KM | Flame-resistant test | EN 60332-1-2 |
| Test Voltage |
AC 6.5kV, 50Hz, 5 min |
UV resistance Test | EN50289-4-17 |
| Standard | EN50618&IEC62930 | ||
The conductor cross-section below 800mm²adopts the compacted conductor with good roundness and high compaction coefficient. The conductor cross-section above 800mm²adopts the split conductor, effectively reducing the skin effect of the conductor and improving the current carrying capacity of the cable.
