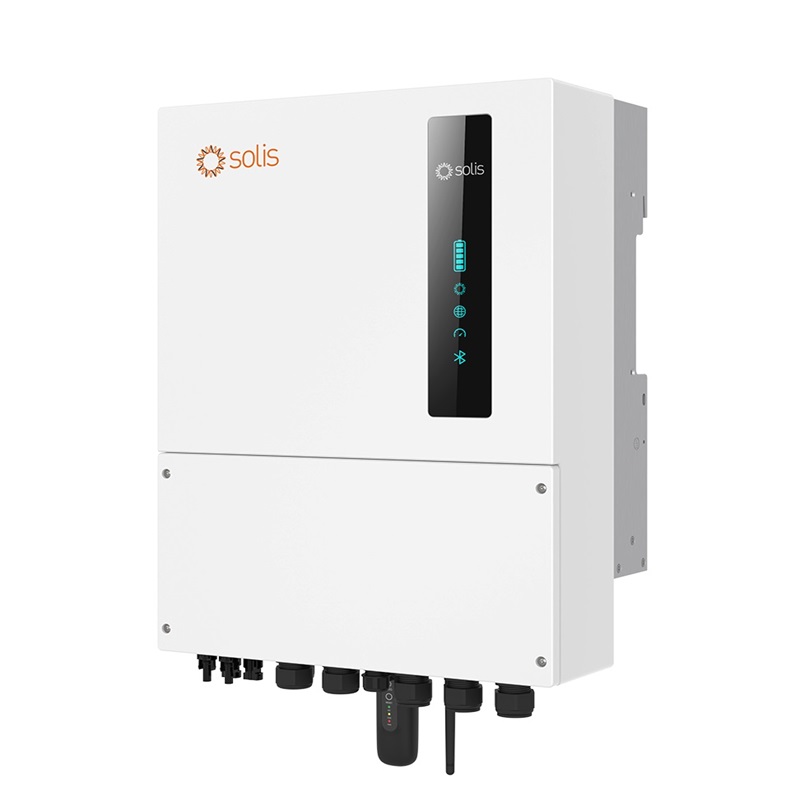

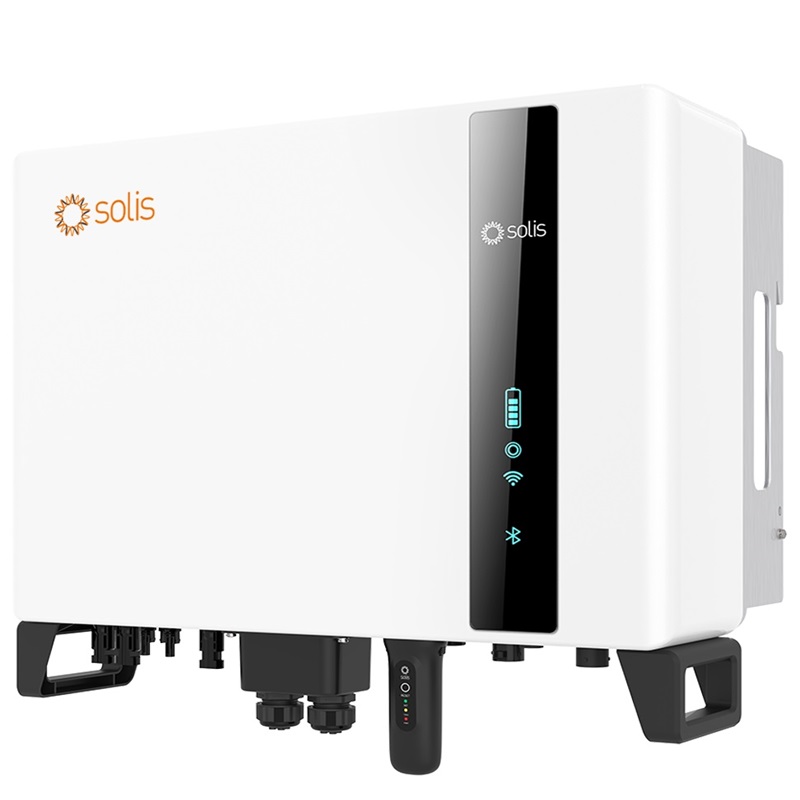

The Solis Hybrid Inverter product power range covers 3kW to 50 kW, and the product classification perfectly meets the actual scene needs of low voltage and high voltage, single-phase and three-phase.
Brand Name :
SolisProduct Model :
S6-EH3P(8-15)K-L, S6-EH3P(5-10)K2-H etcBattery Type :
Lead-acid or Li-lonOutput Voltage (V) :
Single phase 220V or three phase 380VOutput Frequency :
50 Hz / 60 HzMPPT Voltage Range (V) :
200-850 VInverter Type :
HybridMax Input DC Voltage (V) :
1000 VSize: :
422*702*281 mmWeight :
33.6KGBattery Voltage :
40-60 VProtection degree :
IP66Warranty :
5 years(10 years is Optional)
Product Series
S5-EH1P(3-6)K-L
S6-EH1P(3-6)K-L-PRO
S6-EH3P(8-15)K-L
S6-EH3P(5-10)K2-H
S6-EH3P(29.9-50)K-H
Leading Features
1. Automatic UPS switching
2. Up to 135A max charge/discharge current
3. 6 customisable charge/discharge time settings
4. 10 second 200% surge power backup overload capability
5. Supports 1ph and 3ph flexible connection with max 36kW in parallel
6. Supports peak shaving control in both "self-use" and "generator" mode
7. Generator connectivity with multiple input methods and automatic generator On/Off control
8. Compatible with lead-acid and lithium batteries, with multiple battery protection features

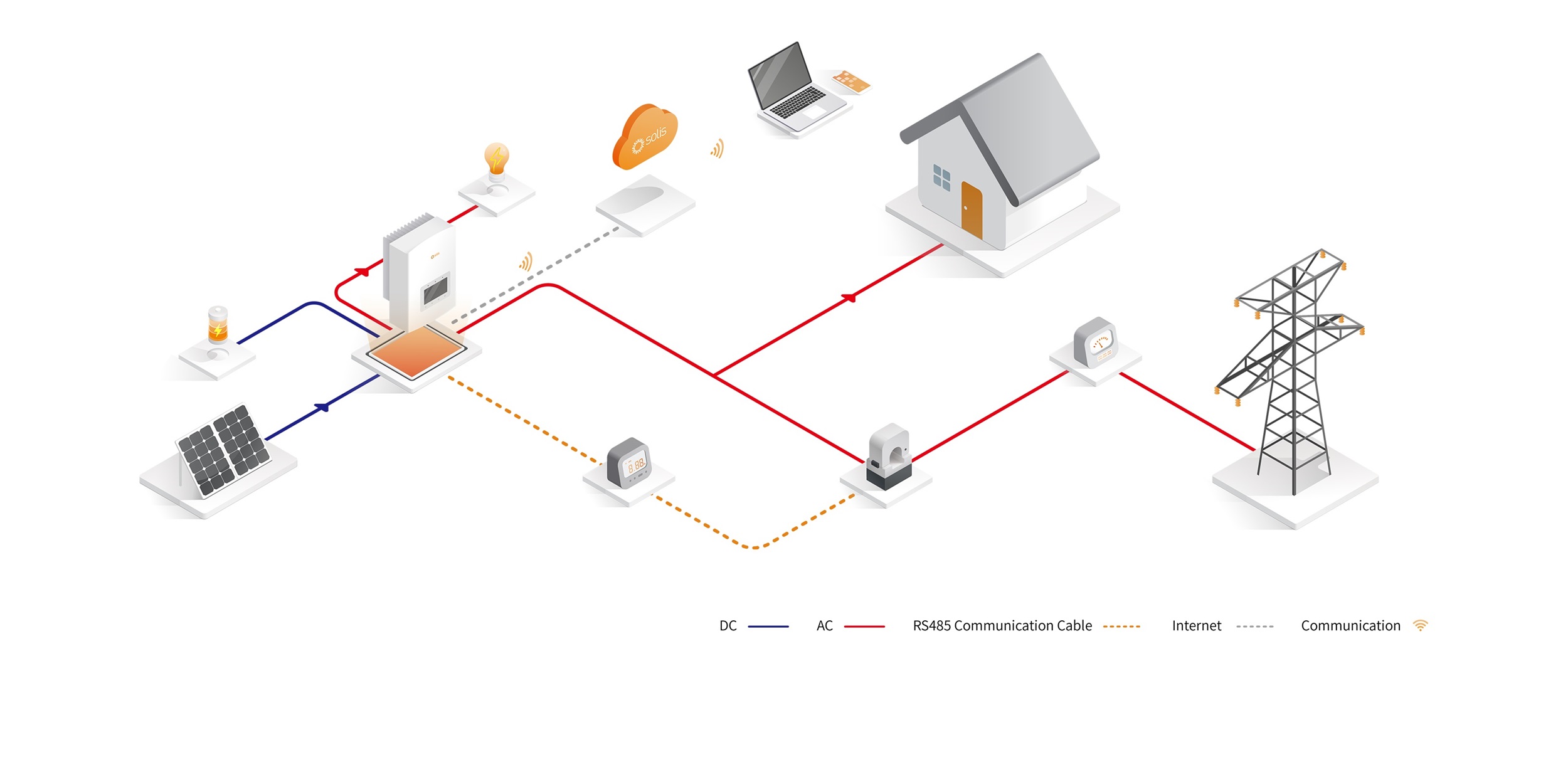

Solis Hybrid Inverter Working Modes
Solis hybrid inverter has a variety of working modes. Such as "Load First": PV power is firstly used to power the load and then used to charge the battery. If PV power is insufficient, grid will make supplement for battery and load simultaneously. "Battery First": PV power is firstly used to charge the battery and then used to power the load. lf PV power is insufficient, grid will make supplement for battery and load simultaneously. "Selling First": This Mode allows hybrid inverter to sell back any excess power produced by the solar panels to the grid. lf time of use is active, the battery energy also can be sold into grid. For more working modes, kindly contact us for asking.
