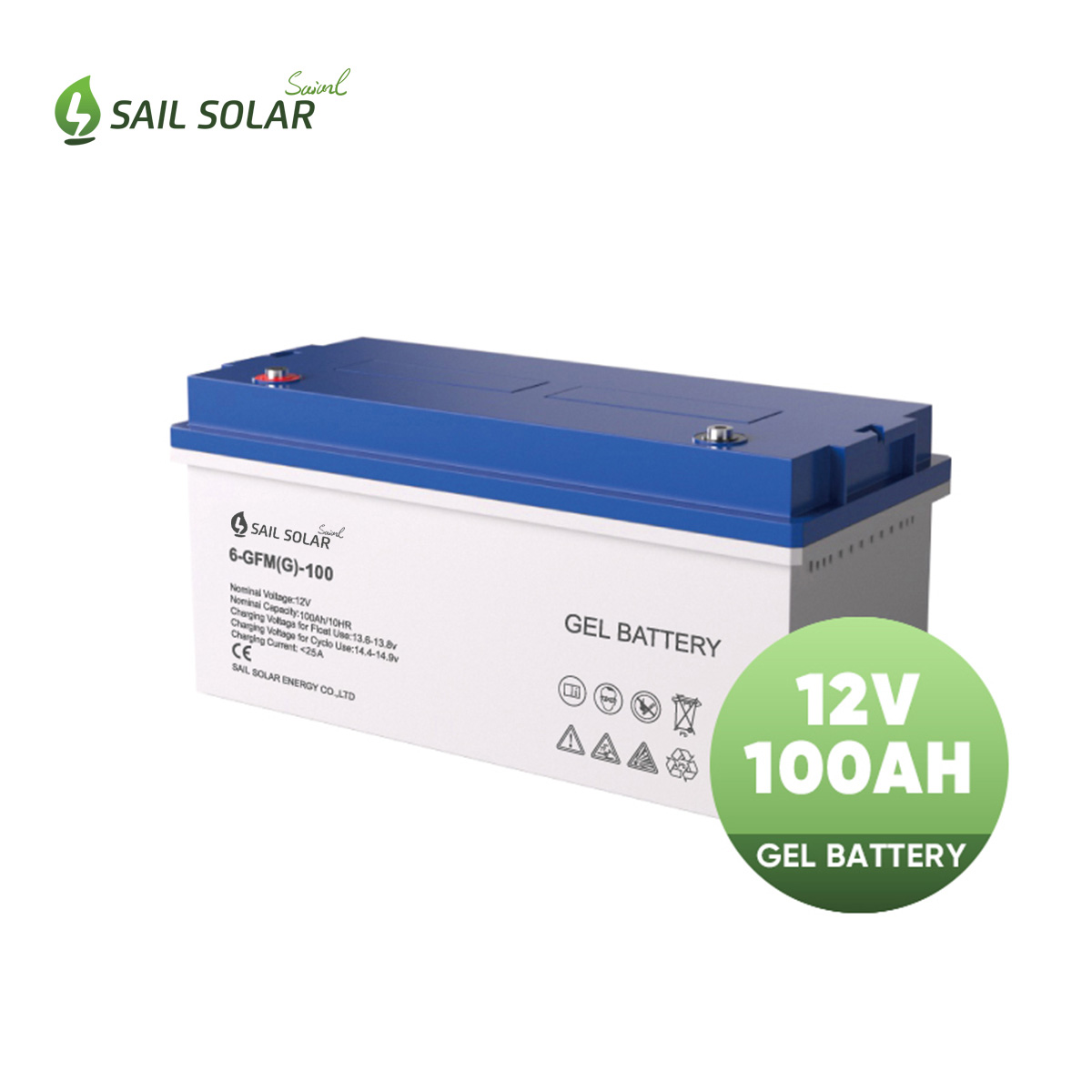

12V 100Ah Gel battery is a valve regulated, maintenance free, lead acid battery. Gel batteries are extremely robust and versatile
Brand Name :
SAIL SOLARProduct Model :
6-GFM(G)-100Capacity Range :
12V 100Ah @10 hr-rate to 1.80V per cell @25℃Design Life :
15 years for 12V (25℃)Number of Cycles :
3000+timesEfficiency :
≥98%Operation Temperature :
-40℃~60℃Terminal Type :
F5 (M8)/ F12 (M8)Self Discharge Rate :
≤3% per monthApplication :
EPS and UPS battery backup/Solar and wind energy storage system /Telecommunication/Signal, emergency lighting and security systemColor&OEM :
White or Black is optional, can be customized. Support OEMCertificates :
CE/ IEC60829-21/22-2004/ IEC61427-2005/ISO9001/ISO14001/OHSAS18001

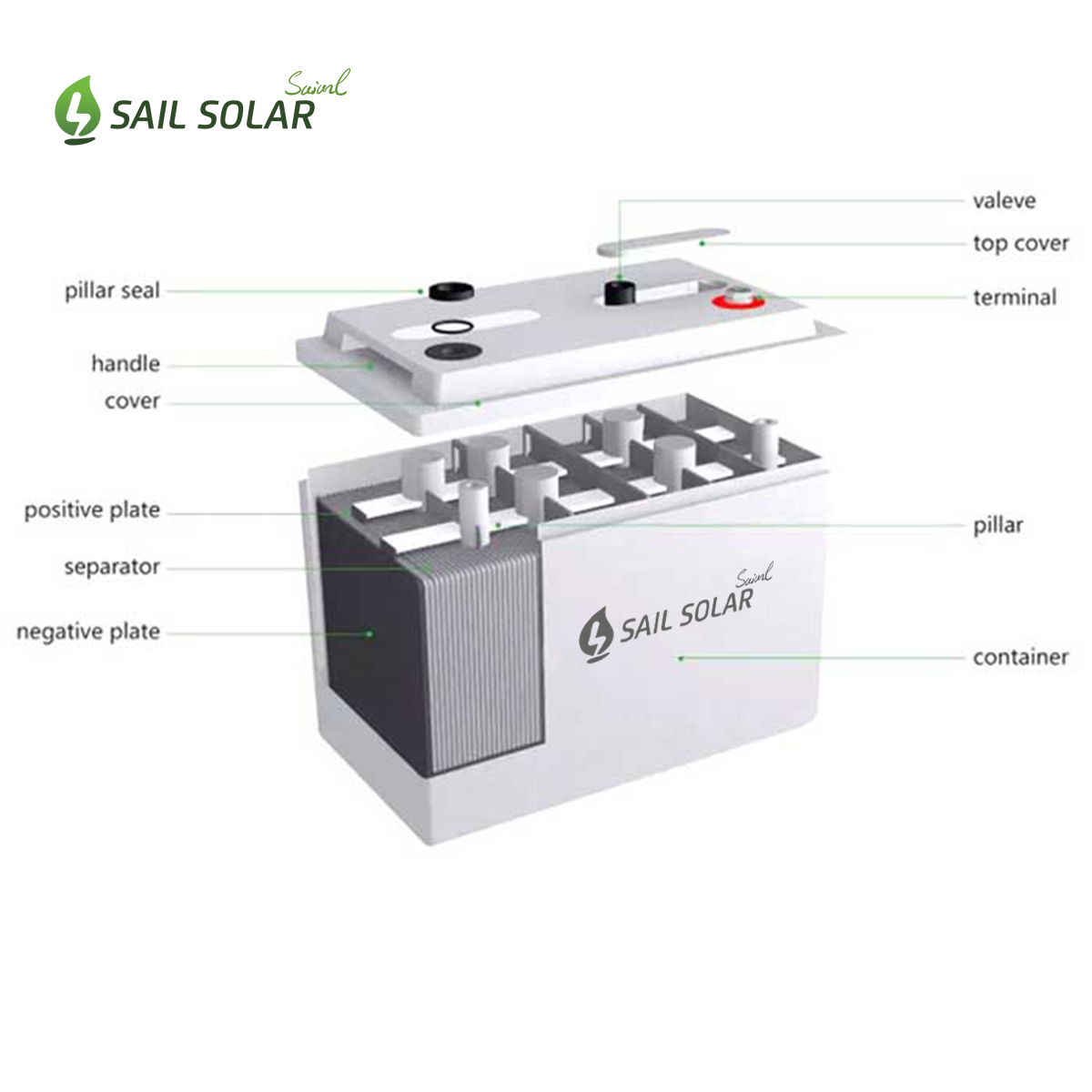

Structure and Principle
As the name suggests, gel batteries are fitted with an immobile and highly viscous electrolyte.
This jelly-like electrolyte is composed of silica and sulfuric acid.
The gel is similar to silicone gel in appearance and composition and is used as a thickening agent.
The gel in gel batteries is composed of silica and sulfuric acid ,which helps to enhance the gel-type battery’s internal structural integrity.
And it holds the lead plates and active material in position.
Product Features
>Best suited for Deep cycle applications and their life is generally in the 500 to 5000 cycles range
>Maintenance free
>Spill protect
>Minimal corrosion therefore compatible with sensitive electronic equipment
>Rugged and vibration-resistant
>Very safe as less risk of sulphuric acid burns
>Lowest cost-per-month (cost / months of life)
>Lowest cost-per-cycle (cost / life cycles)
SAIL SOLAR gel battery had below certifications, with quality assurance.
IEC 61215, IEC 61730, UL 61730
ISO 9001:2008- ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety
CE Certified
