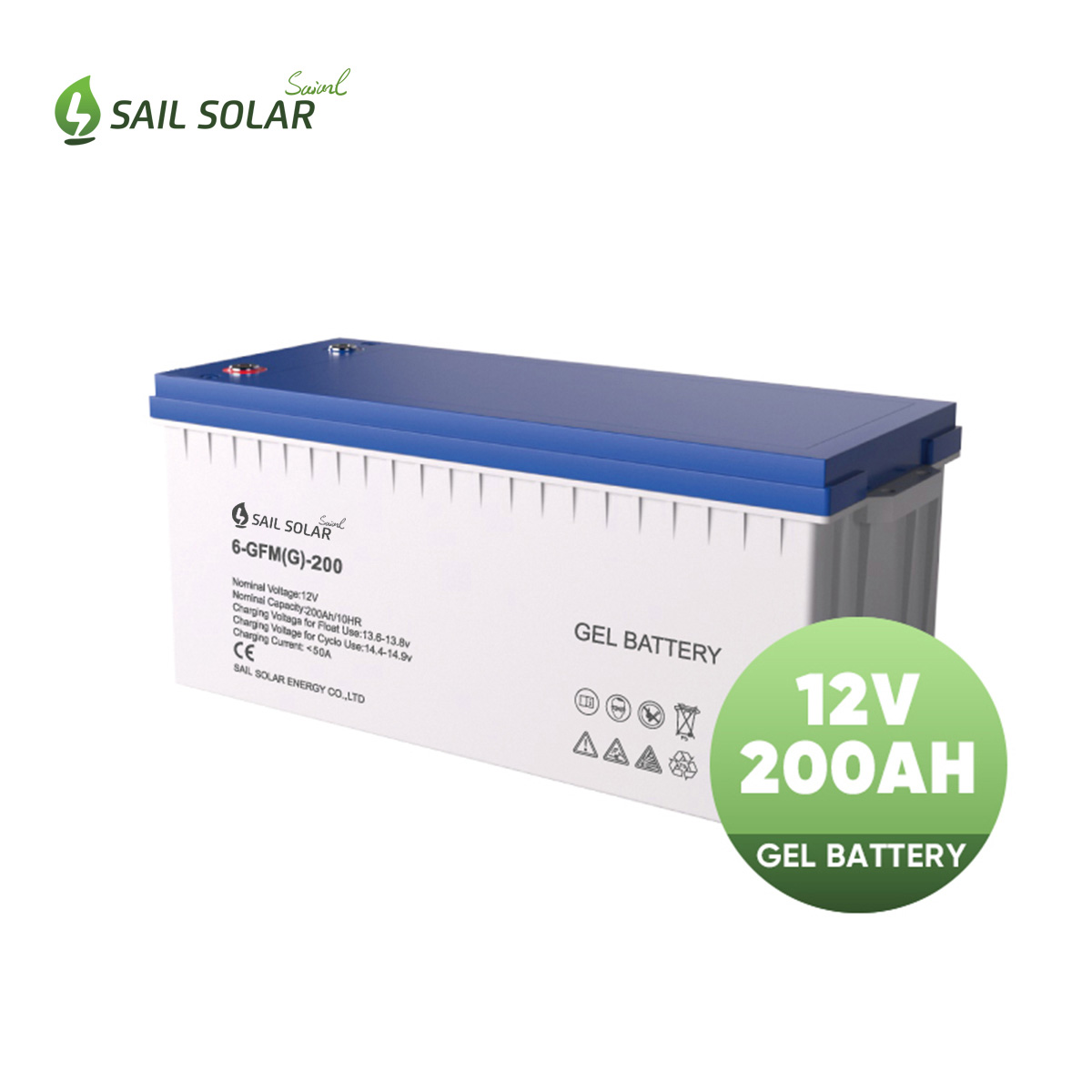

SAIL SOLAR 12V 200Ah Gel battery(VRLA valve-regulated lead–acid ) battery with excellent performance, widely used in solar photovoltaic system
Brand Name :
SAIL SOLARProduct Model :
6-GFM(G)-200Capacity Range :
12V 200Ah @10 hr-rate to 1.80V per cell @25℃Design Life :
15 years for 12V (25℃)Efficiency :
≥98%Number of Cycles :
3000+timesOperation Temperature :
-40℃~60℃Terminal Type :
F16 (M8)/ F10 (M8)Self Discharge Rate :
≤3% per monthCertificates :
CE/ IEC60829-21/22-2004/ IEC61427-2005/ISO9001/ISO14001/OHSAS18001Application :
EPS and UPS battery backup/Solar and wind energy storage system /Telecommunication/Signal, emergency lighting and security systemColor&OEM :
White or Black is optional, can be customized. Support OEM

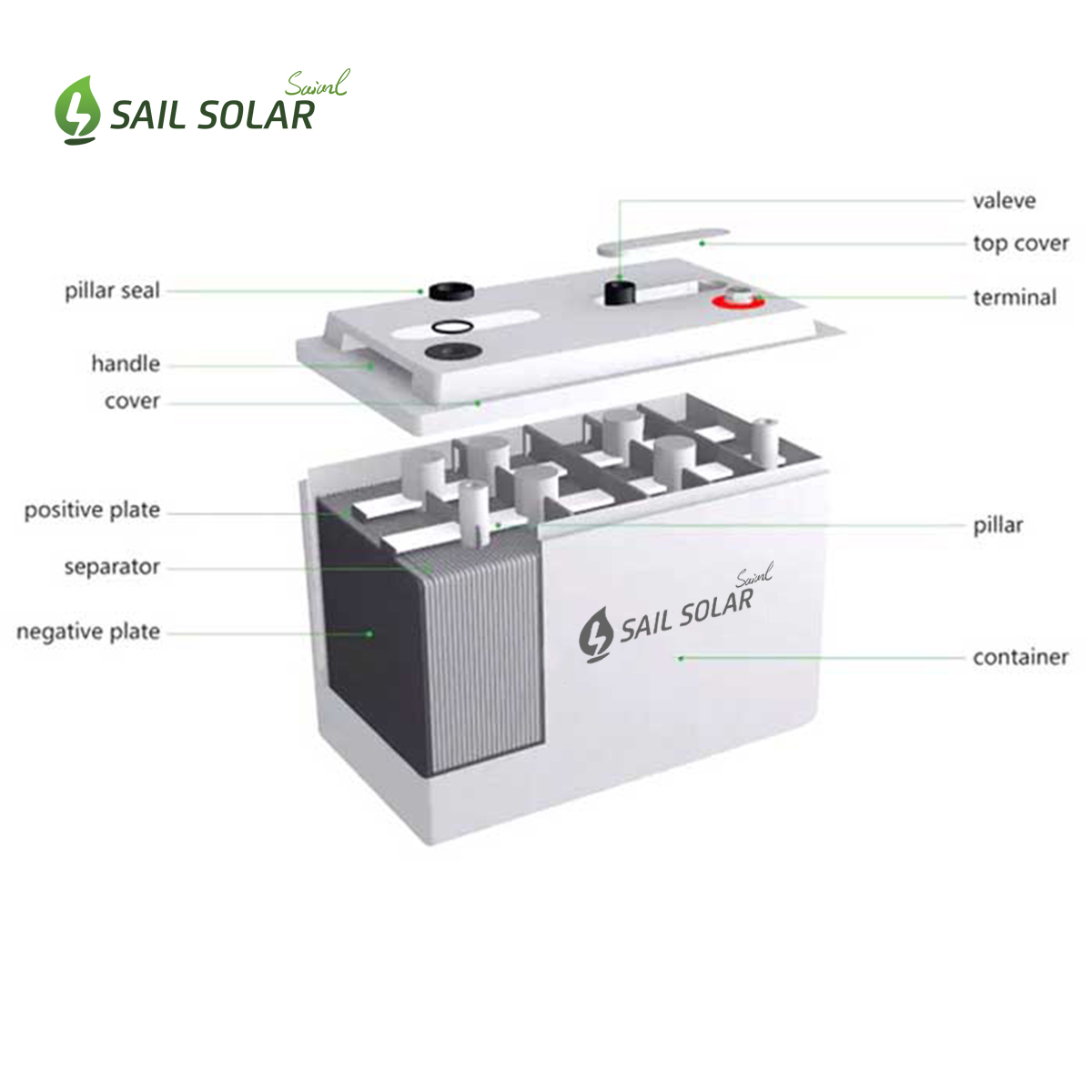

Structure and Principle
Compared to ordinary batteries, gel batteries are better, this technology only uses a small amount of solidified electrolyte to keep the acid immobile. Gel batteries have longer lifespan than traditional batteries; this is due to the fact that the gelled solution can hold their charge for a longer time. This battery type is also durable and can withstand extreme ranges in temperature.
Product Features
>Using oxygen recombination technology: maintenance-free
>PbCaSn alloy for plate grids: less gassing, less self-discharging
>High quality AGM separator: extend cycle life and prevent micro short circuit
>ABS material: increase the strength of battery container. (Flame-retardant ABS is optional);
>High purity raw material: ensure low self-discharge rate 6. Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve the electric conductivity.
SAIL SOLAR Gel battery had below certifications, with quality assurance
IEC 61215, IEC 61730, UL 61730
ISO 9001:2008- ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety
CE Certified
