Hybrid solar system users can choose to flow the energy generated by the photovoltaic solar panel to the national grid or to the battery for energy storage. Essentially, hybrid solar systems users can choose when to on grid or go off the grid.
Brand Name :
SAIL SOLARModel ID :
SAS3KW-12KW-HyApplication :
HomeOutput Voltage (V) :
220v/230v/240vOutput Frequency :
50hz/60hzSolar Panel Type :
Mono(Poly is optional)Inverter Type :
HybridMounting Type :
Roof, Ground and CarportCertificate :
CE/TUV/UL/VDE/INMETROPre-sales system design :
YesOEM :
YesSAIL SOLAR can design and quote a complete hybrid grid solar system for residential users

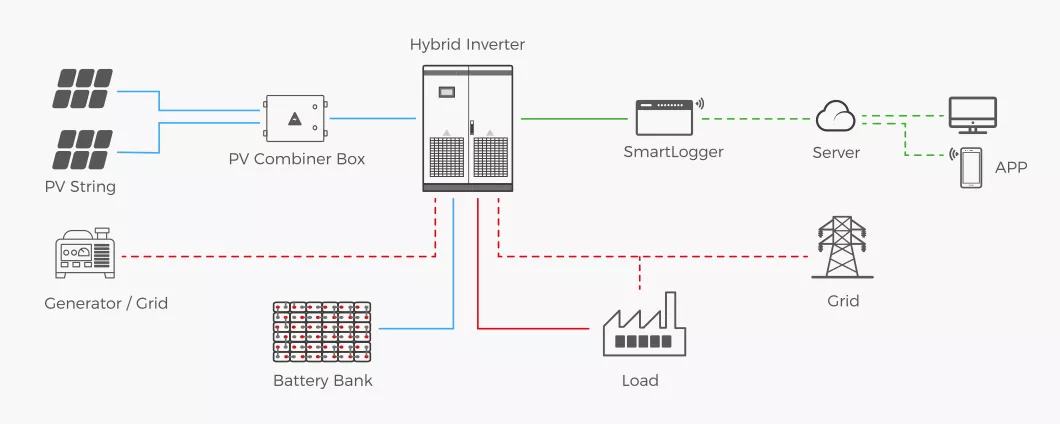

How does hybrid solar system working?
Hybrid system is solar panel connect with state grid, meanwhile, there is a backup battery system to store excess power. Solar energy absorbed by the solar panels passes through an inverter to produce usable electricity. From there, electricity either flows to your home loads, to your battery, or to state grid.
The advantage of hybrid solar system is that you will always have power. With a backup battery, excess energy generated by your solar panels (but not used by your home loads) is stored in the battery. Then, when there is no sunlight, the battery will keep you powered at night, during system outages, or inclement weather.
Use hybrid solar system, you get power from state grid when battery is empty.
Hybrid solar system works by sending solar panel energy to inverter, then inverter send power to your home loads, extra energy not used power is stored in battery.
This battery can provide power to your home loads when your solar panels are not producing energy. After all these steps, if there is still energy left, it will be sent to state grid
What is in sail solar hybrid system
Solar Panel
Mono/Poly/Black etc all type solar panel, High Efficiency P/N type half cell/bifacial solar modules
> 30 years Warranty
> Highest conversion efficiency over 23%
> Anti-reflective and anti-soiling surface power, loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance

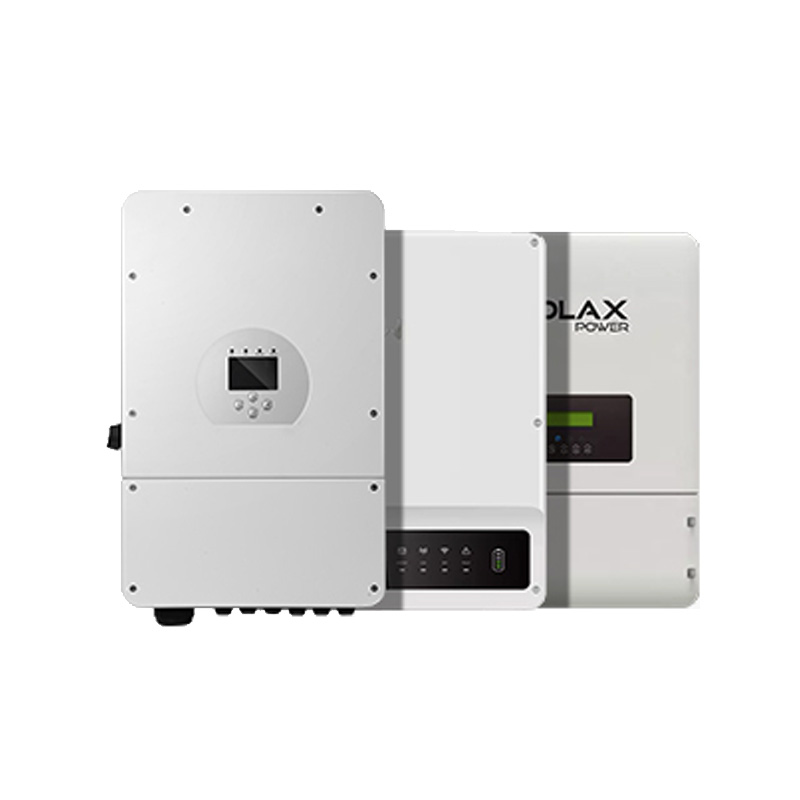

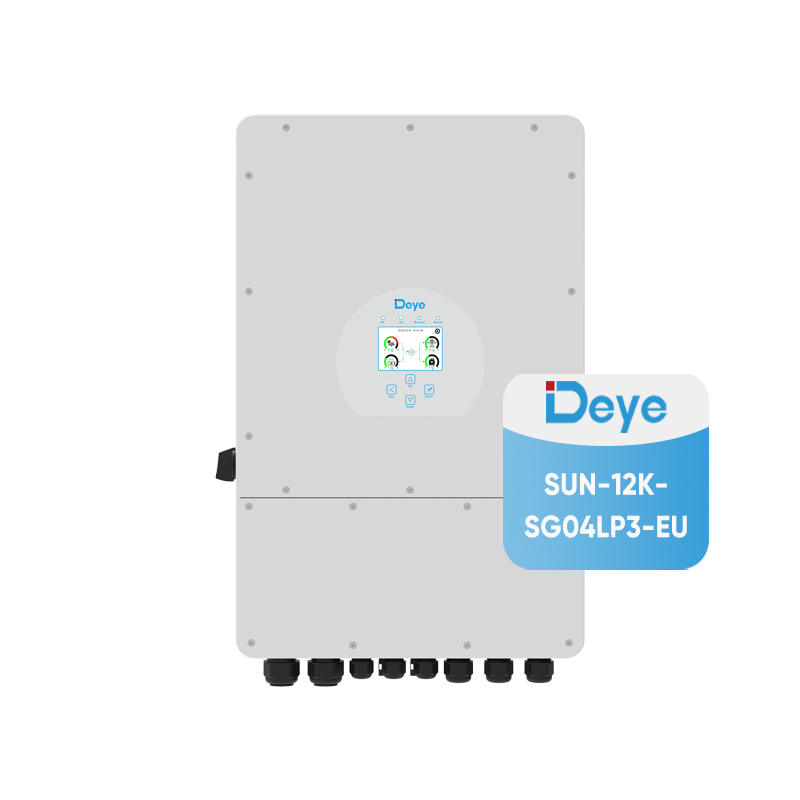

Various hybrid Inverter
>Colorful touch LCD, IP65 protection degree
>DC couple and AC couple to retrofit existing solar system
>Max. 16pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
>Max. charging/discharging current of 190A
>6 time periods for battery charging/discharging
>Support storing energy from diesel generator

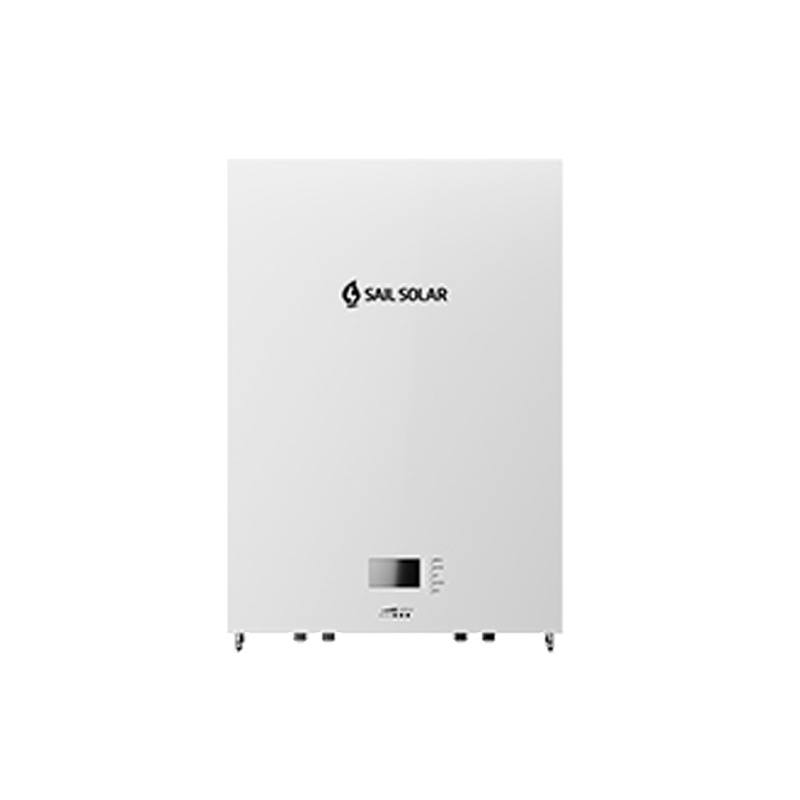

Lithium Battery
Easy to install and use
Just plug and play to minimize the installation time and
cost Compact and fashionable design fits in your sweet
home environment.
Compatiblity
Compatible with most of the available Hybrid inverters
Safety Cert
UL1642, IEC62619, CE, UN38.3, MSDS.
Long life and safety
Vertical industry integration ensures more than 6000 cycles
with 80% DoD Safe Lithium iron phosphate battery cell
Intelligent
Each battery with independent BMS system manages power output smartly and effectively
(Note: Gel battery is optional)
PV Combiner Box
> Customized pv combiner box for solar panels connection
> Anti-Reverse diode/ DC Circuit Breaker/DC fuse/ Surge protection device Included
> Lighting Protection
> IP65 Waterproof
> Applicable for outdoor PV systems
Accessories
Cable
> PV DC Cable 4mm2 6mm2 10mm2, etc
> AC Cable
> MC4 solar compatible connectors
DC Isolating Switch
> Rated Voltage: 1000VDC to 1200VDC > Rated Current: 10A/16A/20A/25A/32A
> IP66 Waterproof degree
> Certificates: CE/CB/TUV/IEC/SAA
Installation Tools
Whole set tools of Installing solar system, Crimping pv connector with cable.
> Solar Crimper
> Connector Wrench
