Grid tied solar systems specifically refer to the solar system that are connected to a utility grid. The electricity generated by the solar panels is sent to the grid and then supplied to various appliances. Grid tied solar systems need to be connected to the utility grid to work, and if there is a power outage, this solar system will not work.
Brand Name :
SAIL SOLARModel ID :
SAS15KW-1000KW-ONApplication :
Commercial and IndustryOutput Voltage (V) :
380v /400v /415vSolar Panel Type :
Mono(Poly is optional)Output Frequency :
50hz/60hzInverter Type :
On GridMounting Type :
Roof, Ground and CarportCertificate :
CE/TUV/UL/VDE/INMETROPre-sales system design :
YesOEM :
YesSAIL SOLAR can design and quote a complete grid tied solar power system for commercial and industry users
How does on grid solar system working?
Solar panels absorb photons from sunlight and start to generating electricity. As these photons get absorbed by solar panel, it lead to a free flow of electrons. This aggressive vibration of electrons generates electric Direct Current (DC).
This direct current enters the inverter. Here, it gets converted into Alternating Current (AC) which is usable by appliances.
Once the requirements of all appliances are fulfilled, the remaining energy is transferred to the utility grid. In a on grid solar system, the utility grid acts as a battery where all excess energy is fed. This is termed as banking of energy.
At night, in the absence of solar energy, loads import the banked energy from the grid. Similarly, in case of less power generation on a cloudy day, the grid will supply the required energy to the loads. Toward the end of the month, a bidirectional meter calculates the bill considering the export and import of energy.
What is in sail solar on grid system
Solar Panel
Mono/Poly/Black etc all type solar panel, High Efficiency P/N type half cell/bifacial solar modules
> 30 years Warranty
> Highest conversion efficiency over 23%
> Anti-reflective and anti-soiling surface power, loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance

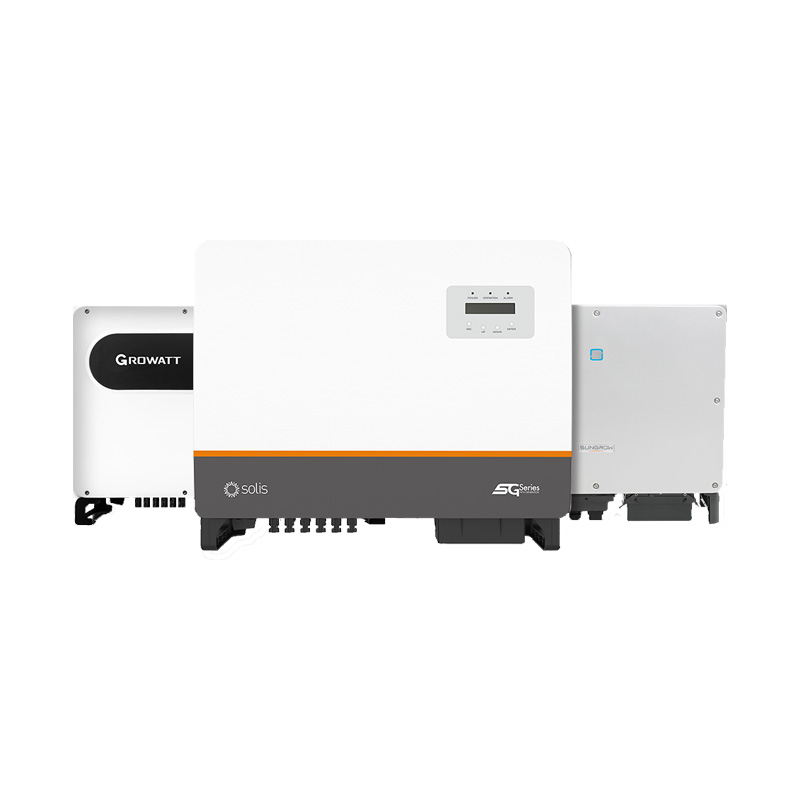

Various On Grid Inverter
> Smart diagnosis
> High efficiency up to 99%
> Local WIFI connection
> String monitoring
>AC&DC type II SPD
> AFCI protection optional
PV Combiner Box
> Customized pv combiner box for solar panels connection
> Anti-Reverse diode/ DC Circuit Breaker/DC fuse/ Surge protection device Included
> Lighting Protection
> IP65 Waterproof
> Applicable for outdoor PV systems
Accessories
Cable
> PV DC Cable 4mm2 6mm2 10mm2, etc
> AC Cable
> MC4 solar compatible connectors
DC Isolating Switch
> Rated Voltage: 1000VDC to 1200VDC > Rated Current: 10A/16A/20A/25A/32A
> IP66 Waterproof degree
> Certificates: CE/CB/TUV/IEC/SAA
Installation Tools
Whole set tools of Installing solar system, Crimping pv connector with cable.
> Solar Crimper
> Connector Wrench
