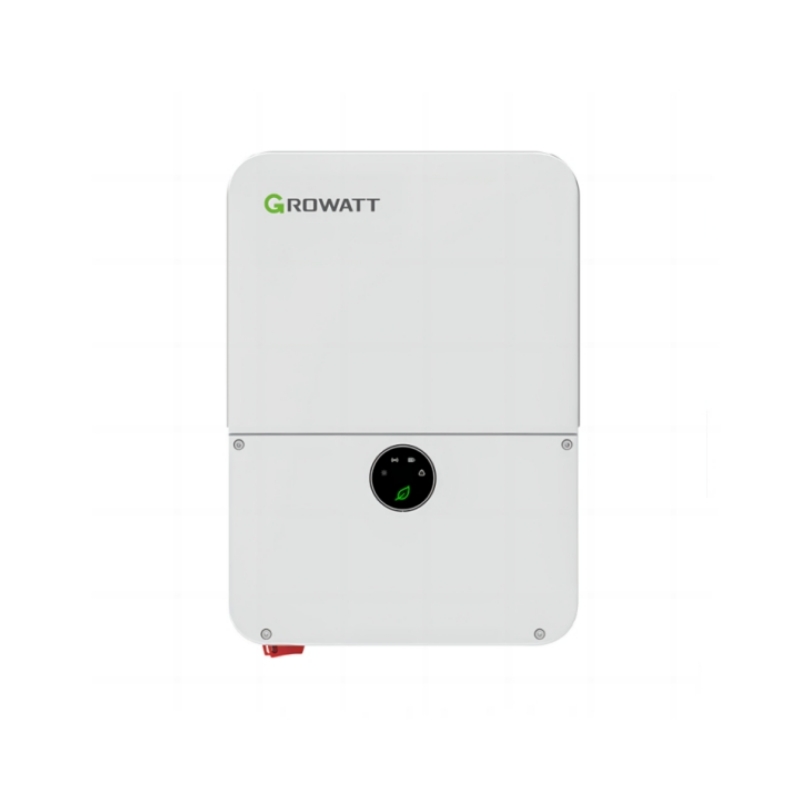

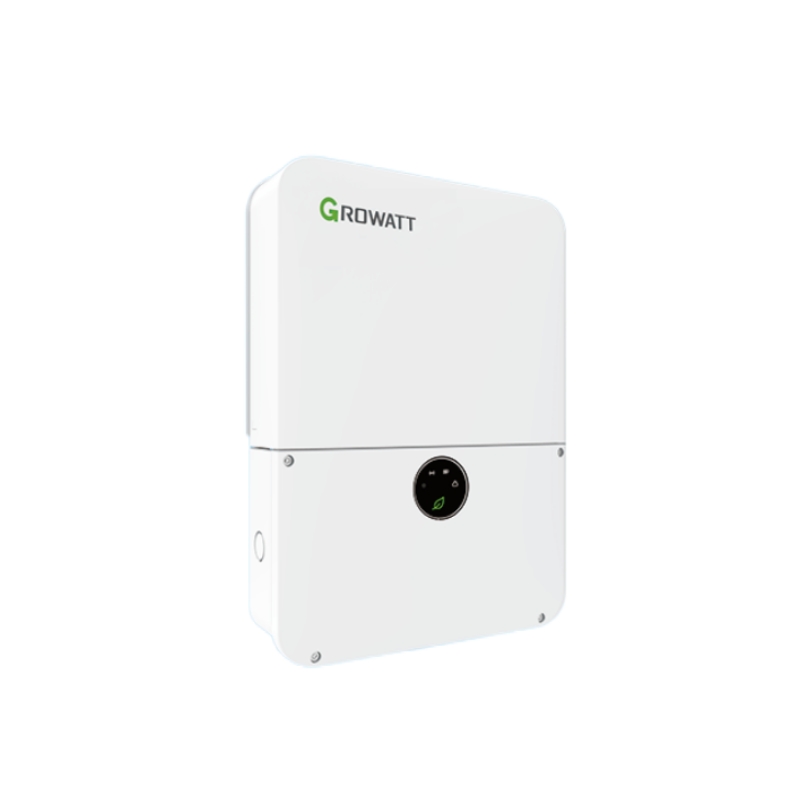

The Growatt MIN3-11400TL-XH-US is an excellent grid-tied inverter that is versatile for both grid-tied and battery storage systems. This model is designed for residential energy storage systems, working with Growatt ATS (automatic transfer switch), then it can also support off-grid solar systems.
Brand Name :
GrowattProduct Model :
MIN3-11400TL-XH-USPower Range :
3000W-11400WMax. Efficiency :
98.5%Battery Type :
LithiumMPPT Voltage Range (V) :
50~550VProtection degree :
IP65Battery Voltage :
360V~550VApplication :
Solar Energy Storage SystemCertificates :
IEEE1547, CA Rule21, Rule14(HECO Compliant), FCC Part15 Class B, Ul1741, UL1741SA, CSA C22.2, UL1699B, UL1741 CRD, UL 9540
Key Features:
Leading Functions:
- Whole home backup
- Dark start operation
- Support RSD, AFCI, and RGM meter
High Yields:
- DC/AC Ratio up to 2.0
- Max. efficiency 98.5%
System Compatibility
- DC Coupled and AC Coupled systems
- Self-consumption, Zero Export, TOU, and Off-Grid
- UL1741SA/SB, CA Rule 21 & HECO

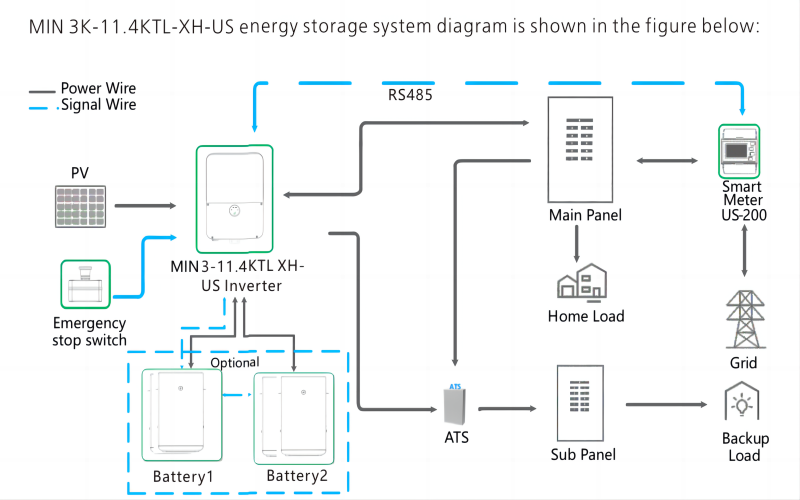

System Working Connection Drawing
This Growatt Hybrid Off-Grid/Grid-Tie Solar & Home Energy Storage System Kit is a turnkey solution for home energy storage that can be used for both AC-coupled systems and DC-coupled systems.
System Configuration Contains:
>MIN 3-11.4KTL-XH-US inverter.
>ARO battery(s) or LG battery(s).
>ATS.
>Electric meter SM-US-200 .
>MIN 3-11.4K TL-XH-US inverter.
>Electric meter SM-US-200 (Optional ).

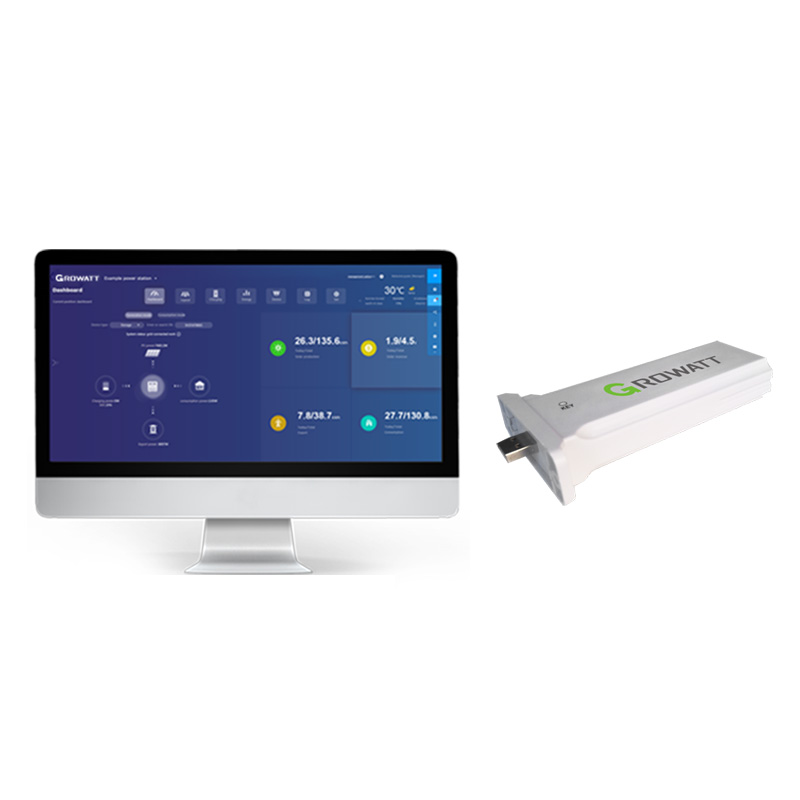

Smart and Powerful– Monitoring Platform
Its Online monitoring and maintenance, which supports local commissioning and firmware upgrade (for ShineWiFi-F)
>Data Security-Data encrypted with built-in memory for one month of data.
>Ability to store data for up to 30 days after connection loss
>Updated information after internet connection is regained
>User-friendly interface
>Easy to use and install
>Operating range up to 50m
>Data accessibility via website or ShinePhone application
