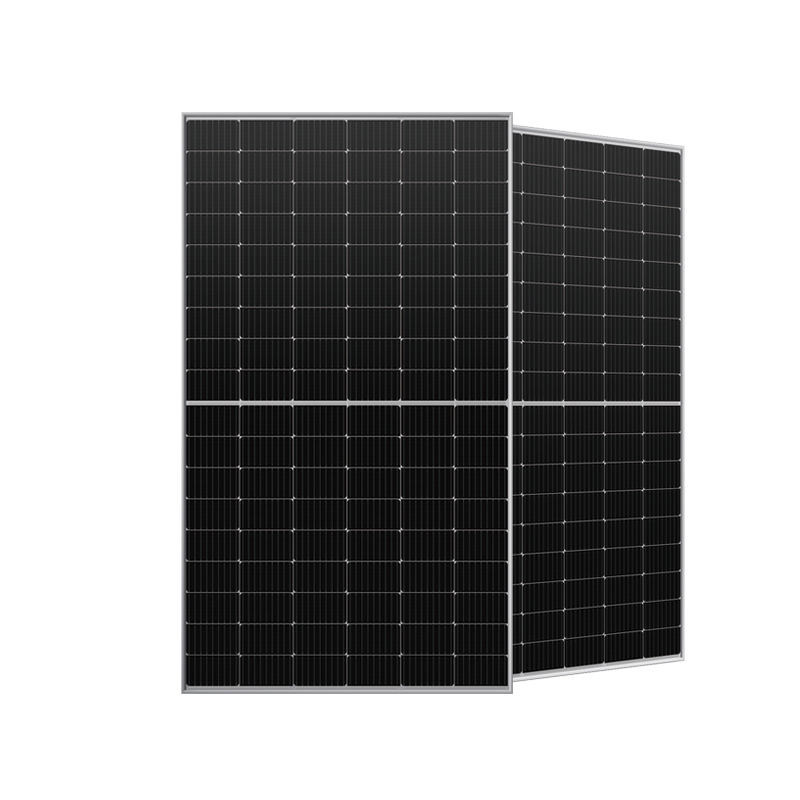

Hi-MO 7 is LONGi's latest generation of high-efficiency modules designed for the market, which uses SMBB welding technology.
Brand Name :
LongiPower Range :
560-620WWeight :
31.8kgMax. Efficiency :
22.8%Number of Cells :
144Dimensions of Module :
2278×1134×30mmGlass :
Dual Glass, 2.0+2.0mm heat strengthened glassCable :
4mm², 400mm in length, length can be customizedWind/Snow Load :
5400Pa/2400PaPacking :
36pcs/palletFrame: :
Anodized aluminum alloy frameJunction Box: :
Split junction box, IP68, 3 diodes
Hi-MO 7 has excellent power generation performance and product reliability, making it particularly suitable for applications with high albedo, high temperature, and limited space.
Bifacial:
LR7-72HGD 560-590W
LR7-72HGD 585-620W
HPDC is a bifacial dual-junction cell which is produced by hybrid passivation technology. Different passivation technologies are used on the front and back of this cell, which can effectively reduce the carrier recombination and enhance the cell's power generation capacity. At the same time, the high and low junctions on the backside can realize full passivation and further reduce surface recombination.
Electrical Performance Parameters (STC Test)
| Module Model | LR7-72HGD-595M | LR7-72HGD-600M | LR7-72HGD-605M | LR7-72HGD-610M |
| Maximum power (Pmax/W) | 595 | 600 | 605 | 610 |
| Open-circuit voltage (Voc/V) | 52.11 | 52.22 | 52.33 | 52.44 |
| Short circuit current (Isc/A) | 14.41 | 14.49 | 14.57 | 14.65 |
| Peak power voltage (Vmp/V) | 44.01 | 44.12 | 44.23 | 44.34 |
| Peak power current (Imp/A) | 13.52 | 13.60 | 13.68 | 13.76 |
| Temperature coefficient of short circuit current (Isc) |
+0.450%/℃ |
|||
| Temperature coefficient of open circuit voltage (Voc) | -0.230%/℃ | |||
| Temperature coefficient of peak power (Pmax) |
-0.280%/℃ |
|||
STC: Standard test conditions
Electrical Performance Parameters (NOCT Test)
| Module Model | LR7-72HGD-595M | LR7-72HGD-600M | LR7-72HGD-605M | LR7-72HGD-610M |
| Maximum power (Pmax/W) | 452.9 | 456.7 | 460.66 | 464.4 |
| Open-circuit voltage (Voc/V) | 49.53 | 49.63 | 49.73 | 49.84 |
| Short circuit current (Isc/A) | 11.58 | 11.64 | 11.70 | 11.76 |
| Peak power voltage (Vmp/V) | 41.83 | 41.93 | 42.03 | 42.14 |
| Peak power current (Imp/A) | 10.83 | 10.89 | 10.96 | 11.03 |
NOCT: Normal operating cell temperature
AUTHORIZATION
LONGi Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.
We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
