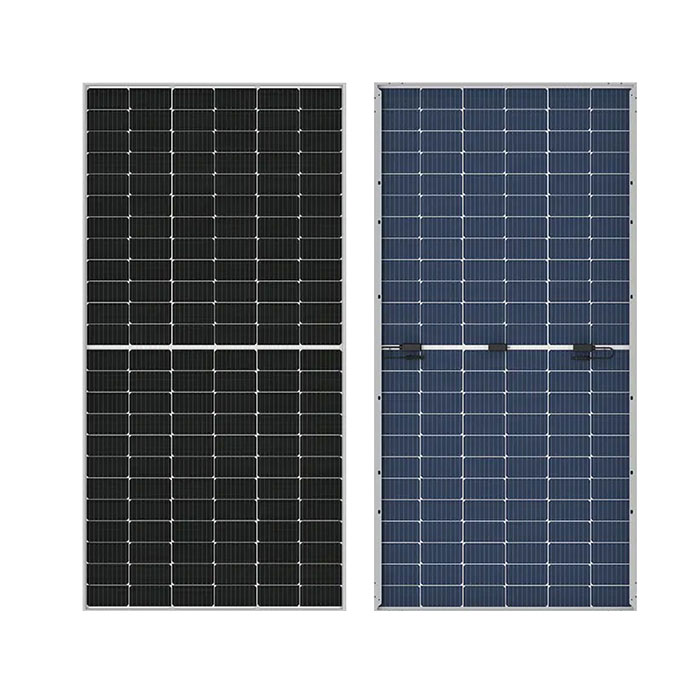

M6 Mono PERC Half-cells Technology, SAIL SOALR HiPro3 Series 144Cells Bifacial Solar PV Module 445W 450W 455W 460W 465W 470W 475W
Brand Name :
SAIL SOLARPower Range :
445~475WWeight :
27.5kgMax. Efficiency :
21.9%Number of Cells :
144CellsDimensions of Module :
2094x1038x35mmGlass :
Dual, 2.0mm coated tempered glassCable :
4mm2, 300mm in length, length can be customizedWind/Snow Load :
5400Pa/2400PaPacking :
MC4Frame: :
Anodized aluminum alloy frameJunction Box: :
IP68, three diodes166mm PERC Half Cells Bifacial MBB Mono 445W-475W Solar Panel

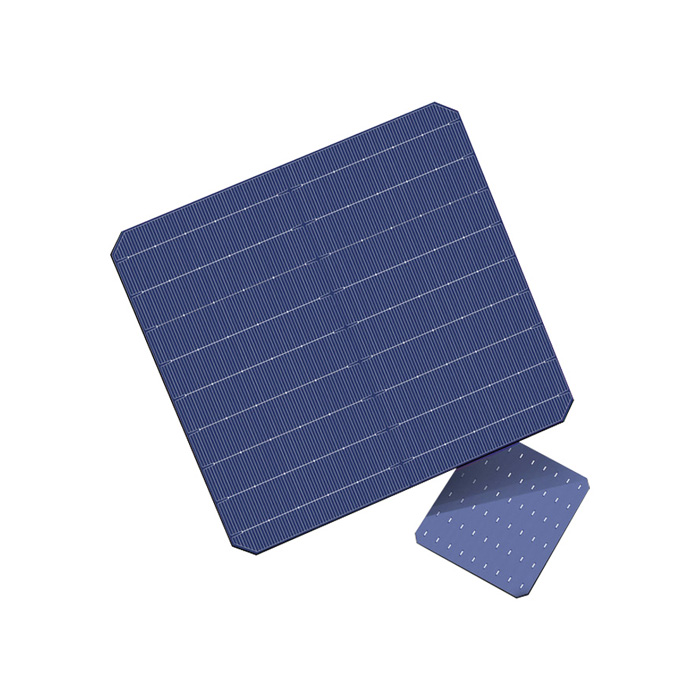

“Passivated Emitter and Rear Contact” solar cells, known as PERC solar cells, are becoming more common today as an option for making solar panels. PERC solar cells are modified conventional cells that enable the cells to produce 6 to 12 percent more energy than conventional solar panels. PERC solar cells have an extra layer within the back side of the cell. This allows some of the sun’s rays to reflect back into the solar cell, giving them another opportunity to be turned into energy.
Product Feature
High module conversion efficiency (up to 20.9%)
Better energy yield with excellent low irradiance performance and temperature coefficient
First year power degradation <2%
Bifacial technology enables additional energy harvesting from rear side (up to 25%)
Glass/glass lamination ensures 30 years product lifetime, with annual power degradation < 0.45%, 1500V compatible to reduce BOS cost
Solid PID resistance ensured by solar cell process optimization and careful module BOM
Reduced resistive loss with lower operating current
Higher energy yield with lower operating temperature
Reduced hot spot risk with optimized electrical design and lower operating current
| Module ID | SAS445MB-144H | SAS450MB-144H | SAS455MB-144H | SAS460MB-144H | SAS465MB-144H | SAS470MB-144H | SAS475MB-144H |
| Maximum Power (Pmax/W) | 445 | 450 | 455 | 460 | 465 | 470 | 475 |
| Maximum Power Voltage (Vmp/V) | 41.75 | 42.1 | 42.41 | 42.76 | 43.1 | 43.44 | 43.78 |
| Maximum Power Current (Imp/A) | 10.66 | 10.69 | 10.73 | 10.76 | 10.79 | 10.82 | 10.85 |
| Open Circuit Voltage (Voc/V) | 49.55 | 49.84 | 50.1 | 50.39 | 50.68 | 50.96 | 51.25 |
| Short Circuit Current (Isc/A) | 11.31 | 11.34 | 11.37 | 11.4 | 11.43 | 11.47 | 11.5 |
| Module Efficiency (%) | 20.5 | 20.7 | 20.9 | 21.2 | 21.4 | 21.6 | 21.9 |
| Power Output Tolerance (W) |
0~+5W | ||||||
| Temperature Coefficient of Isc |
+0.044%/°C | ||||||
| Temperature Coefficient of Voc |
-0.272%/°C | ||||||
| Temperature Coefficient of Pmax | -0.350%/°C | ||||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
