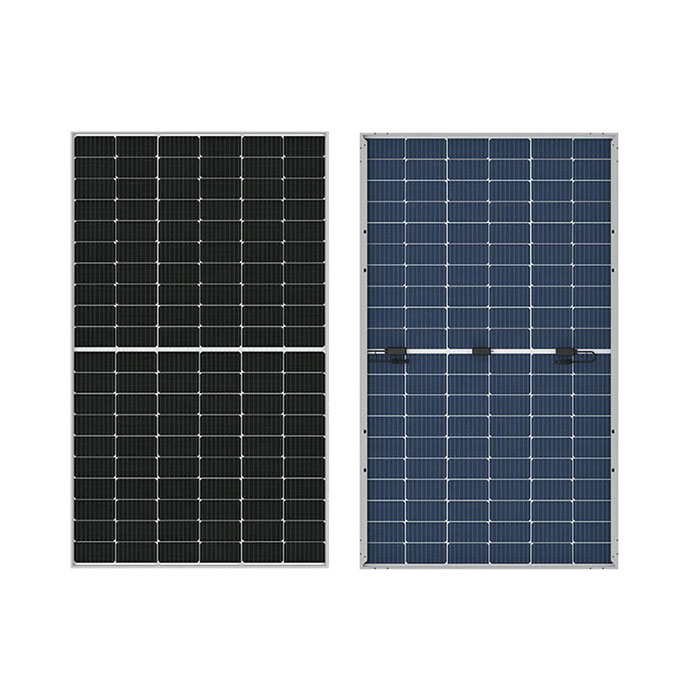

120Half Cells 350Wp 355Wp 360Wp 365Wp 370Wp 375Wp 380Wp PERC Monocrystalline MBB Bifacial Double Glass Photovoltaic Solar Panel Module Based on 166mm Solar Cell
Brand Name :
SAIL SOLARPower Range :
350~380WWeight :
23.3kgMax. Efficiency :
20.9%Number of Cells :
120CellsDimensions of Module :
1755x1038x30/35mmGlass :
Dual, 2.0mm coated tempered glassCable :
4mm2, 300mm in length, length can be customizedWind/Snow Load :
5400Pa/2400PaPacking :
MC4Frame: :
Anodized aluminum alloy frameJunction Box: :
IP68, three diodes166mm P Type Half Cells Bifacial MBB Mono 350W-380W Solar Panel

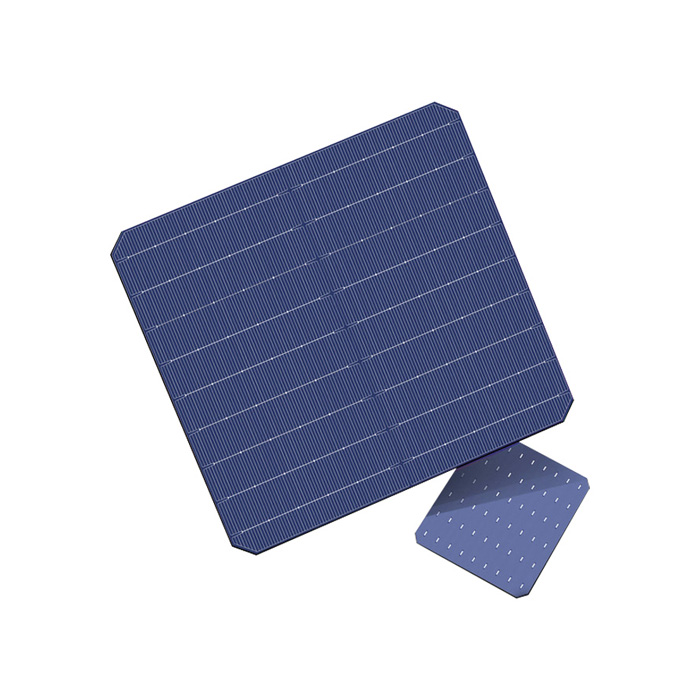

Bifacial 166mm PERC solar cells, Laser SE combined with PERC technology is used to make this family high power solar cell. PREC is short for Passivated Emitter and Rear Cell. It is based on the P type monocrystalline silicon solar cell. High efficiency solar cells is beneficial for lowering the BOS cost of solar power system.
Product Feature
Ensured PID resistance through solar cell and module material control
Resistant to salt, acid and ammonia
Reliable in high temperature and humidity areas
Certificated to fire class A
5400 Pa positive load and 2400 Pa negative load
Up to 25% additional power gain from back side depending on the albedo
Excellent IAM and low light performance validated
Lower temp coeffcient (-0.35%) and NMOT bring more energy leading to lower LCOE
Better anti-shading performance and lower operating temperature
| Module ID | SAS350MB-120H | SAS355MB-120H | SAS360MB-120H | SAS365MB-120H | SAS370MB-120H | SAS375MB-120H | SAS380MB-120H |
| Maximum Power (Pmax/W) | 350 | 355 | 360 | 365 | 370 | 375 | 380 |
| Maximum Power Voltage (Vmp/V) | 33.5 | 33.7 | 33.9 | 34.1 | 34.3 | 34.5 | 34.7 |
| Maximum Power Current (Imp/A) | 10.45 | 10.54 | 10.62 | 10.71 | 10.79 | 10.87 | 10.96 |
| Open Circuit Voltage (Voc/V) | 40.1 | 40.3 | 40.5 | 40.7 | 40.9 | 41.1 | 41.3 |
| Short Circuit Current (Isc/A) | 11.15 | 11.24 | 11.33 | 11.41 | 11.50 | 11.58 | 11.67 |
| Module Efficiency (%) | 19.2 | 19.5 | 19.8 | 20.0 | 20.3 | 20.6 | 20.9 |
| Power Output Tolerance (W) |
0~+5W | ||||||
| Temperature Coefficient of Isc |
+0.044%/°C | ||||||
| Temperature Coefficient of Voc |
-0.272%/°C | ||||||
| Temperature Coefficient of Pmax | -0.350%/°C | ||||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
