M12 Solar Cells Half Cult MBB PERC Solar PV Panel 530Wp 535Wp 540Wp 545Wp 550Wp 555Wp Monocrystalline Solar Panel Module
Brand Name :
SAIL SOLARPower Range :
530~555WMax. Efficiency :
21.43%Weight :
28.6kgNumber of Cells :
110ellsDimensions of Module :
2384×1096×35 mmGlass :
Single glass, 3.2mm coated tempered glassCable :
4mm2, 300mm in length, length can be customizedBacksheet :
WhiteWind/Snow Load :
5400Pa/2400PaPacking :
MC4Frame: :
Anodized aluminum alloy frameJunction Box: :
IP68, three diodes210mm PERC Half Cult 110Cells MBB Mono 530Watt ~555Watt Solar Panel

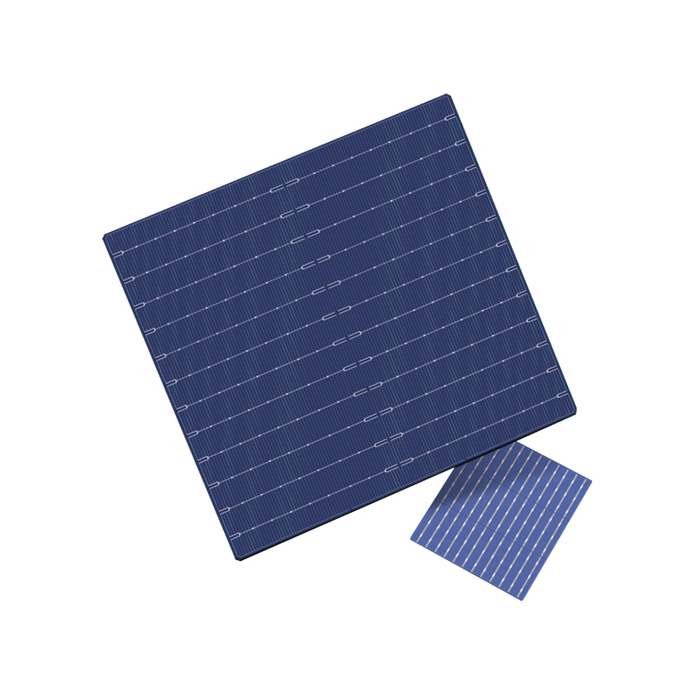

M12 210mm solar cells, 12BB design, which increases the ability to collect current while reducing internal damage, and reduces the shading area and increases the effective light receiving area. The power of the module is at least increased by 5W. MBB is different from the traditional design of the main cabinet and welding strips. Due to the small spacing between the grid lines, even if there are cracks and fragments in the battery sheet, it can continue to maintain a good power output.
Positive power tolerance (0~+5W) guaranteed
High module conversion efficiency
Slower power degradation enabled by Low LID Mono PERC technology: first year <2%,
glass lamination ensures 25 years product lifetime, with annual power degradation < 0.55%
Labor bearable size and weight module , suitable for ground mounting , flat rooftop inclined installing projects and carport project.
Assembled with 35mm frame, better mechanical durability, easy for handling and installing.
Good self cleaning ability, less maintenance in lifespan.
| Module ID | SAS530M-110H | SAS535M-110H | SAS540M-110H | SAS545M-110H | SAS550M-110H | SAS555M-110H |
| Maximum Power (Pmax/W) | 530 | 535 | 540 | 545 | 550 | 555 |
| Maximum Power Voltage (Vmp/V) | 30.80 | 31.00 | 31.20 | 31.40 | 31.60 | 31.80 |
| Maximum Power Current (Imp/A) | 17.21 | 17.26 | 17.31 | 17.36 | 17.41 | 17.46 |
| Open Circuit Voltage (Voc/V) | 37.30 | 37.50 | 37.70 | 37.90 | 38.10 | 38.30 |
| Short Circuit Current (Isc/A) | 18.11 | 18.16 | 18.21 | 18.26 | 18.31 | 18.36 |
| Module Efficiency (%) | 20.48 | 20.67 | 20.86 | 21.05 | 22.24 | 21.43 |
| Power Output Tolerance (W) |
0~+5W | |||||
| Temperature Coefficient of Isc |
+0.044%/°C | |||||
| Temperature Coefficient of Voc |
-0.272%/°C | |||||
| Temperature Coefficient of Pmax | -0.350%/°C | |||||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
