Jinko N-type Series Monocrystalline Multi Busbar 550Wp 555Wp 560Wp Bifacial Half Cell Solar Panel PV Module Double Glass All Black 420Wp 415Wp 410Wp 405Wp Black Frame
Brand Name :
JinkoPower Range :
425-445WpWeight :
21.0kgMax. Efficiency :
21.51%Number of Cells :
108 (54x2)Dimensions of Module :
1762×1134×30mmGlass :
3.2mmCable :
4mm², 300mm in length, length can be customizedWind/Snow Load :
5400Pa/2400PaPacking :
36pcs/pallets, 72pcs/stack, 936pcs/ 40'HQ ContainerFrame: :
Anodized Aluminium AlloyJunction Box: :
IP68 Rated
Tiger Neo series is the latest iteration in Jinko's range, adopting cutting-edge TOPCon technology. A high-purity N-type cell substrate, all black aesthetic design and portable installation dimensions make Jinko this module become one of the most popular series in the European market.

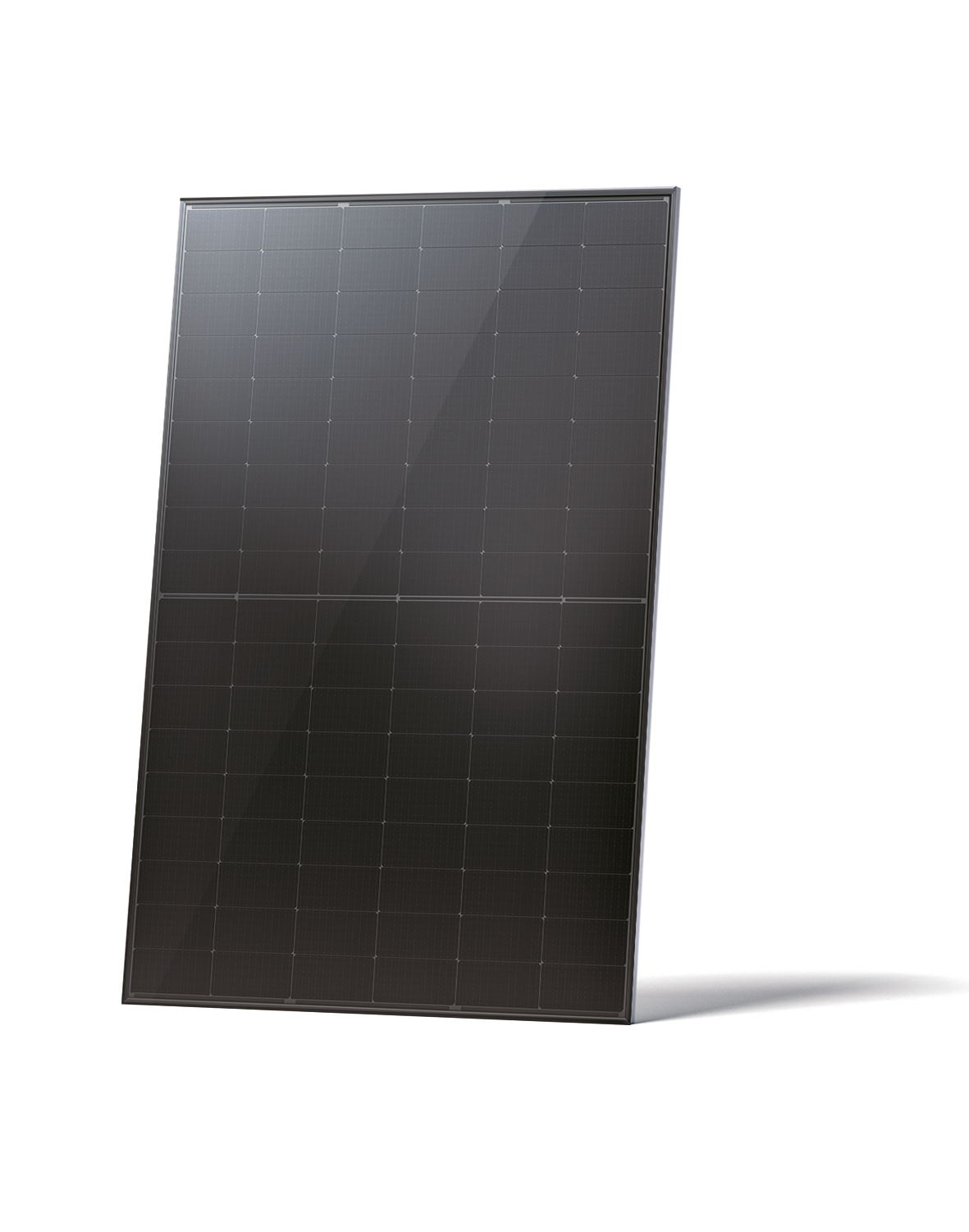

All Black:
JKM420-440N-54HL4R-B
JKM425-445N-54HL4R-BDB
With hot 2.0 technology, the N-type pv module possesses much better reliability and much lower LID/LETID. Compared with conventional modules, half-cell design modules improve shading response and lower shading loss experienced in certain shading conditions.
Monoficial:
JKM410-430N-54HL4
JKM425-445N-54HL4R
JKM460-480N-60HL4
JKM565-585N-72HL4
JKM610-630N-78HL4
Using transparent backsheet technology, n-type bifacial dual glass modules are resistant to light induced degradation and up to 20% power gain. Long service lifetime and higher temperature tolerance and more efficiency enable this module to be the first option for photovoltaic product buyers.
Bifacial:
JKM560-580N-72HL4-BDV
JKM605-625N-78HL4-BDV
Product Parameters(STC)
| Maximum Power - Pmax[Wp] | 425 | 430 | 435 | 440 | 445 |
| Maximum Power Voltage - Vmp[V] | 32.37 | 32.58 | 32.78 | 32.99 | 33.19 |
| Maximum Power Current - Imp[A] | 13.13 | 13.20 | 13.27 | 13.34 | 13.41 |
| Open-circuit Voltage - Voc[V] | 38.95 | 39.16 | 39.36 | 39.57 | 39.77 |
| Short-circuit Current - Isc[A] | 13.58 | 13.65 | 13.72 | 13.80 | 13.87 |
| Module Efficiency STC[%]v | 21.27 | 21.52 | 21.77 | 22.02 | 22.27 |
AUTHORIZATION
Jinko Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.
We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
