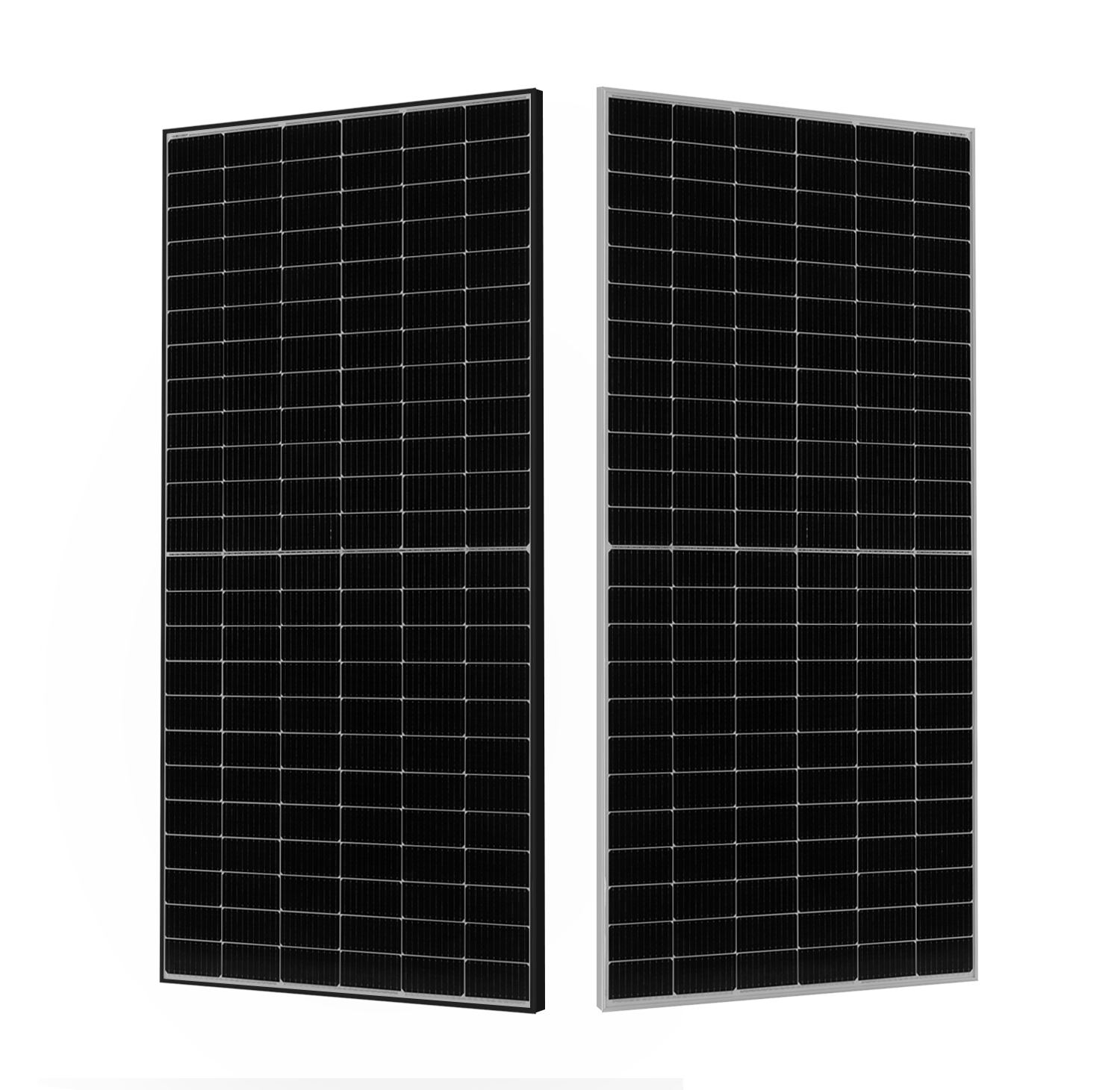

Jinko P-type Series Monocrystalline Multi Busbar 550Wp 555Wp 560Wp Bifacial Half Cell Solar Panel PV Module 450Wp 460Wp 470Wp Double Glass 420Wp 415Wp 410Wp 405Wp
Brand Name :
JinkoPower Range :
535-555wpMax. Efficiency :
21.48%Weight :
31 kg (68.34bs)Number of Cells :
144 (6x24)Dimensions of Module :
2278×1134×30mm (89.69×44.65×1.18 inch)Glass :
2.0 mmBacksheet :
WhiteCable :
4mm², 300mm in length, length can be customizedWind/Snow Load :
5400Pa/2400PaPacking :
36pcs/pallets, 72pcs/stack, 720pcs/ 40'HQ ContainerFrame: :
Anodized Aluminium AlloyJunction Box: :
IP68 Rated
Compared with conventional standard module, the efficiency of Tiger Pro module applying multi-busbar technology is increased by 0.4%, highly lower micro-crack risk. Simultaneously, the module is applicable to various places, such as kinds of building roof, carport, desert covered circumstance, sun room, highway etc.
Monofacial: JKM395-415M-54HL4
JKM450-470M-60HL4
JKM540-560M-72HL4

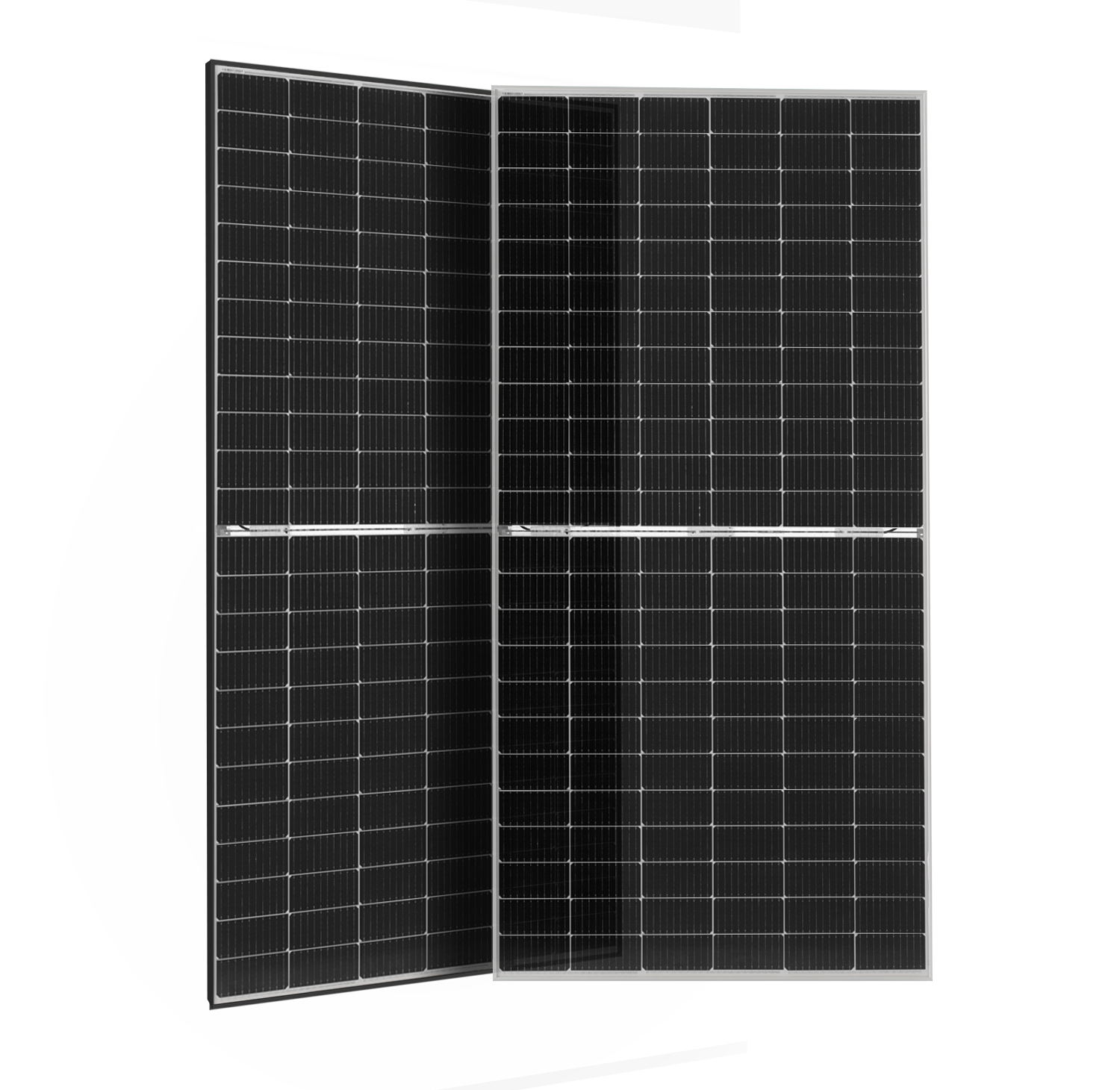

Using transparent backsheet technology, n-type bifacial dual glass modules are resistant to light induced degradation and up to 20% power gain. The immunity that p-type cells are resistant to light induced degradation leads to a longer carrier lifetime of the cell.
Bifacial：JKM535-555N-72HL4-BDVP
Product Parameters(STC)
| Module Type | JKM535M-72HL4-BDVP | JKM540M-72HL4-BDVP | JKM545M-72HL4-BDVP | JKM550M-72HL4-BDVP | JKM555M-72HL4-BDVP |
| Maximum Power (Pmax) | 535Wp | 540Wp | 545Wp | 550Wp | 555Wp |
| Maximum Power Voltage (Vmp) | 40.94V | 41.13V | 41.32V | 41.51V | 41.70V |
| Maximum Power Current (Imp) | 13.07A | 13.13A | 13.19A | 13.25A | 13.31A |
| Open-circuit Voltage (Voc) | 49.54V | 49.73V | 49.92V | 50.11V | 50.30V |
| Short-circuit Current (Isc) | 13.83A | 13.89A | 13.95A | 14.01A | 14.07A |
| Module Efficiency STC (%) | 20.71% | 20.90% | 21.10% | 21.29% | 21.48% |
AUTHORIZATION
Jinko Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.
We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
