Trina Tier 1 PERC Series 415Wp 420Wp 425Wp 430Wp Half Cell Solar Panel Monocrystalline 405Wp 410Wp 415Wp 420Wp PV Module Black Frame Hot Seller 390Wp 395Wp 400Wp 405Wp Solar Panel
Brand Name :
TrinaPower Range :
405-425WpMax. Efficiency :
21.3%Weight :
21.8 kg (48.1 lb)Number of Cells :
144 cellsDimensions of Module :
1762×1134×30 mm (69.37×44.65×1.18 inches)Glass :
3.2 mmCable :
Photovoltaic Technology Cable 4.0mm2 (0.006 inches²), Portrait: 350/280 mm(13.78/11.02 inches) Length can be customizedBacksheet :
Black-WhiteWind/Snow Load :
6000 Pa/ 4000 PaPacking :
Modules per box: 36 pieces Modules per 40’ container: 936 piecesFrame: :
30mmJunction Box: :
IP 68 rated
Trina Solar Vertex S series designed with aesthetics in mind provides a visual feast. Perfect size and low weight make it easy for handling and economy for transporting. All-black appearance perfectly matches different architectural styles and application scenarios.

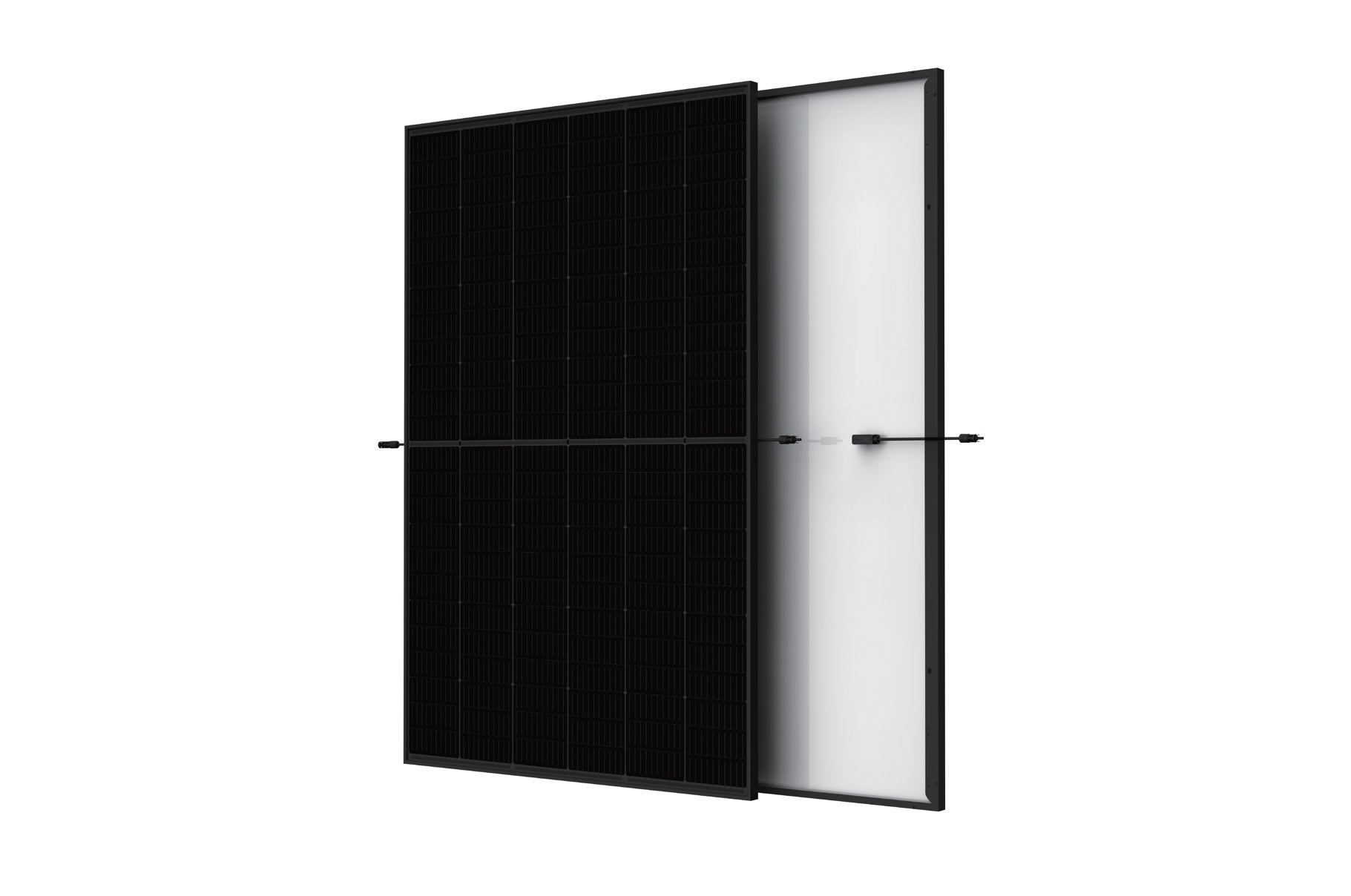

All Black:
TSM-DE09.05
TSM-DE09R.05
Vertex S comes with an extended 15-year product warranty and a full 25-year performance warranty-for peace of mind and long-lasting returns.
The upgraded Vertex S series modules feature excellent product performance along with innovative and design-inspired aesthetics. Module's multi-busbar technology for better light trapping effect, lower series resistance and improved current collection.

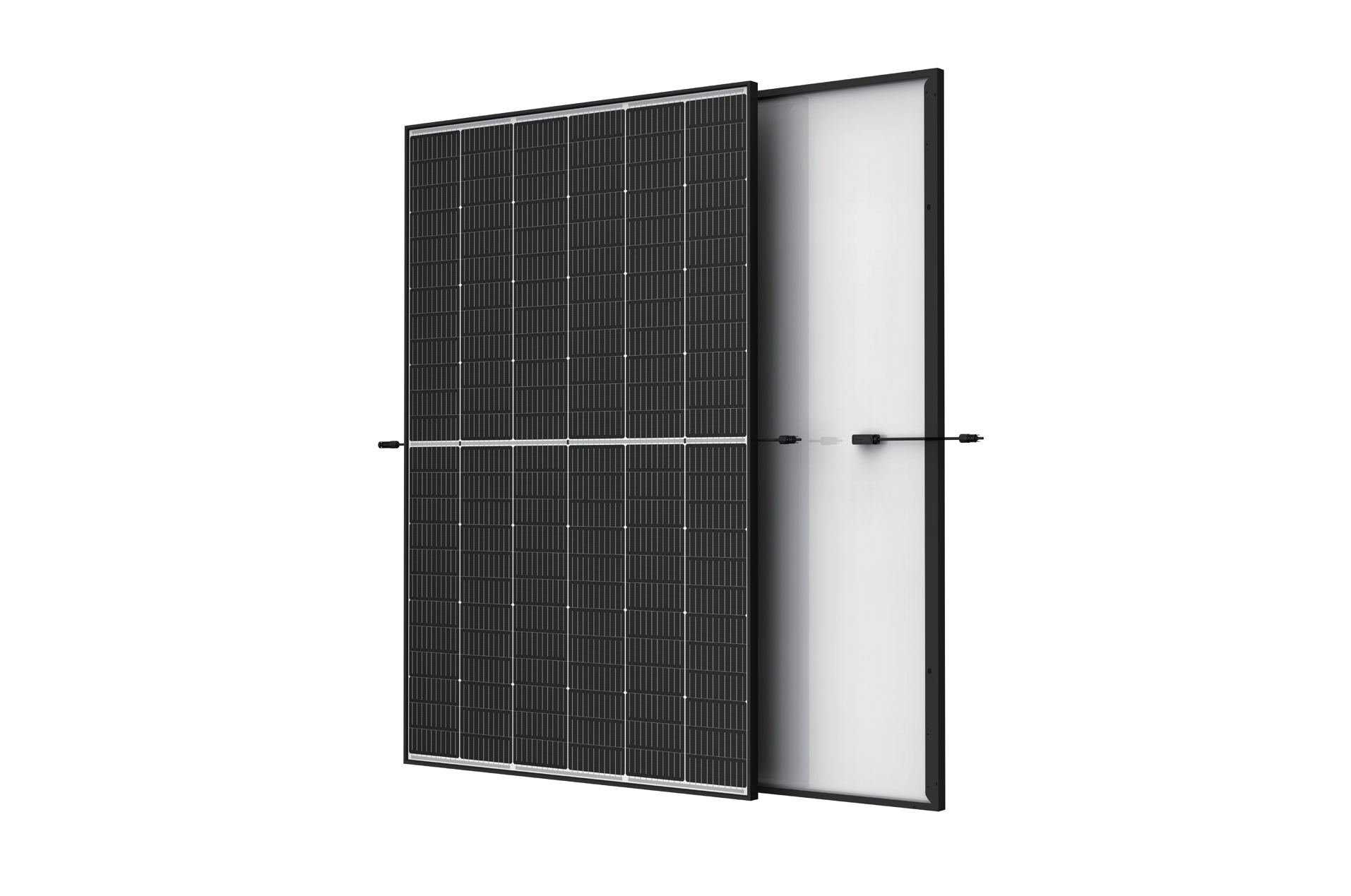

Black Frame:
TSM-DE09.08
TSM-DE09R.08
Vertex S comes with an extended 15-year product warranty and a full 25-year performance warranty-for peace of mind and long-lasting returns.
Based on the 210mm large-size silicon wafer and monocrystalline PERC cell, the innovative Vertex allows high power output up to 670W. Multi-busbar, Non-destructive cutting and high-density interconnect technologies, which together allow it to reach 670W power output and 21.6% module efficiency. Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas, which makes the installation places more diverse. By virtue of low-voltage and higher module string power output, the new Vertex series unlocks huge potential for further reducing balance-of-system costs.

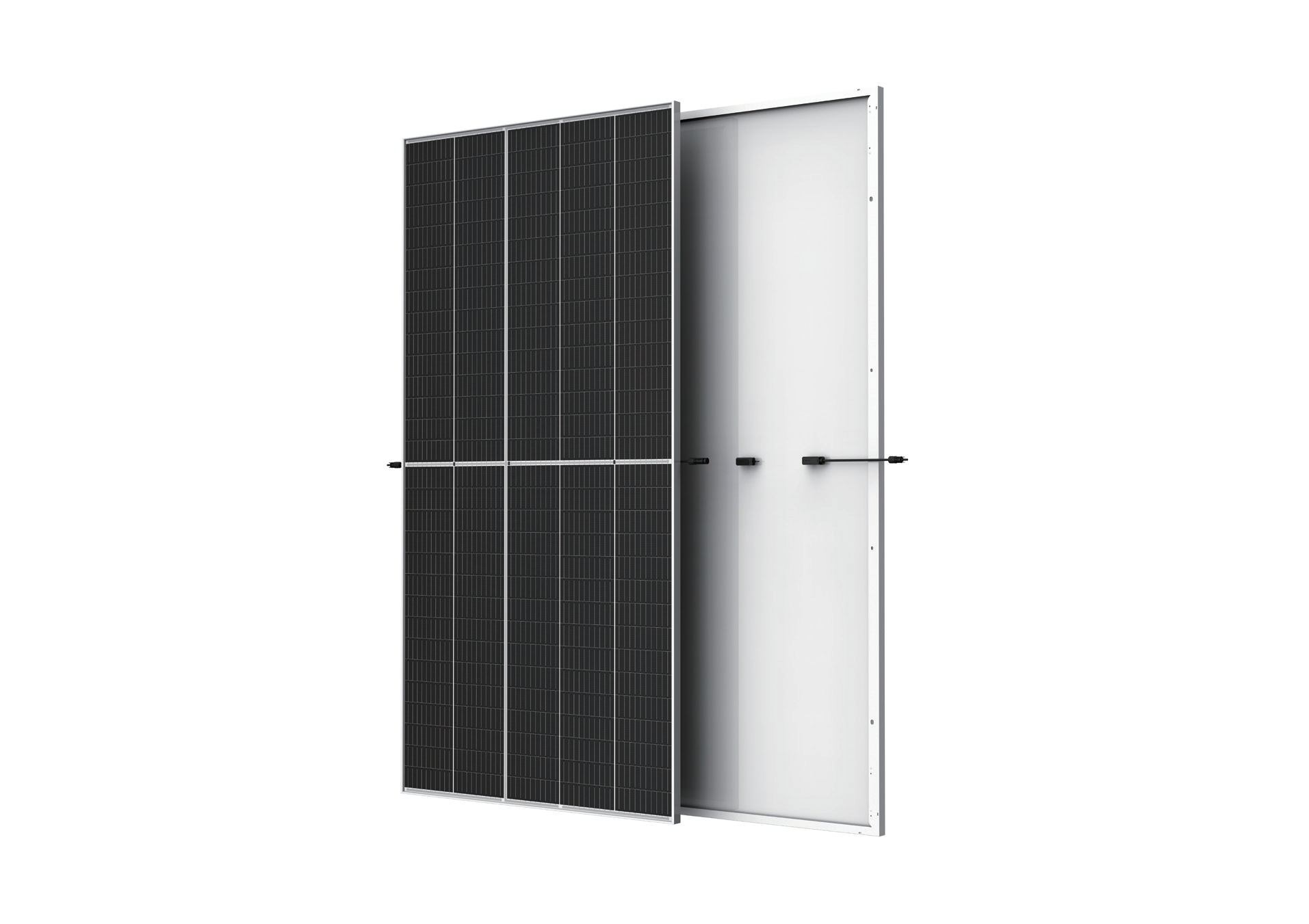

Mono:
TSM-DE18M
TSM-DE19
TSM-DE20
TSM-DE21
Nowadays the market share of PV modules featuring MBB technology is dominant in the global solar industry.
Product Parameters(STC)
| Peak Power Watts-PMAX (Wp)* | DE09R.05 405W | DE09R.05 410W | DE09R.05 415W | DE09R.05 420W | DE09R.05 425W |
| Power Tolerance-PMAX (W) | 0 ~ +5 | ||||
| Maximum Power Voltage-VMPP (V) | 41.3 | 41.5 | 41.7 | 42.0 | 42.2 |
| Maximum Power Current-IMPP (A) | 9.82 | 9.87 | 9.94 | 10.01 | 10.08 |
| Open Circuit Voltage-VOC (V) | 49.7 | 49.8 | 50.0 | 50.1 | 50.2 |
| Short Circuit Current-ISC (A) | 10.50 | 10.53 | 10.55 | 10.58 | 10.61 |
| Module Efficiency η m (%) | 20.3 | 20.5 | 20.8 | 21.0 | 21.3 |
AUTHORIZATION
Trina Solar is highly committed to retaining its 'leadership in mono’and being a loyal partner in its distribution network.
We have obtained their official authorization and established a long-term, stable, and sustainable cooperative relationship.
