Based on the exclusive cell size and relying on TOPCON cutting-edge technology, the Vertex series continues to provide experience in solving efficient power generation problems.
Brand Name :
TrinaPower Range :
675-700WpMax. Efficiency :
22.5%Weight :
38.3 kg (84.4 lb)Number of Cells :
132 cellsDimensions of Module :
2384×1303×33 mm (93.86×51.30×1.30 inches)Glass :
2.0 mmCable :
Photovoltaic Technology Cable 4.0mm2Wind/Snow Load :
5400 Pa/ 2400 PaPacking :
Modules per box: 33 pieces Modules per 40’ container: 594 piecesJunction Box: :
IP 68 ratedFrame: :
33mm(1.30 inches) Anodized Aluminium Alloy
With high density interconnect and SMBB (Super multi-busbar) technology, module efficiency is improved up to 22.5%. The innovative design of low-voltage and higher string power output improves system efficiency, reducing BOS (Balance of System) costs and LCOE (Levelized Cost Of Energy).

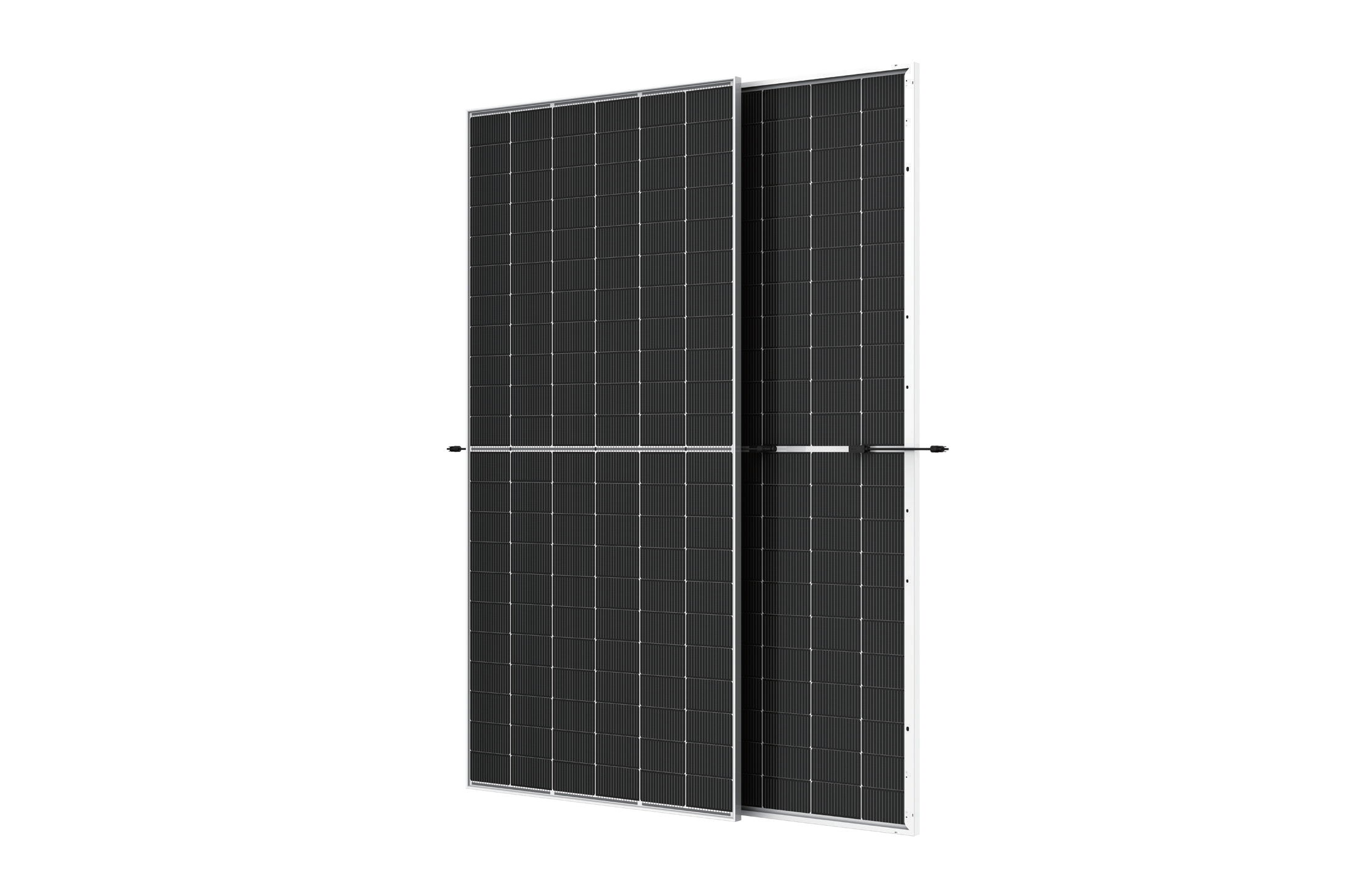

Bifacial:
NEG19RC.20
NEG20C.20
NEG21C.20
Upgraded dual glass of Vertex S has transparent design with aesthetics appearance, up to 3.2% transparency. Perfect size and low weight make it easy for handling and economy for transporting. All-black appearance perfectly matches different architectural styles and application scenarios.

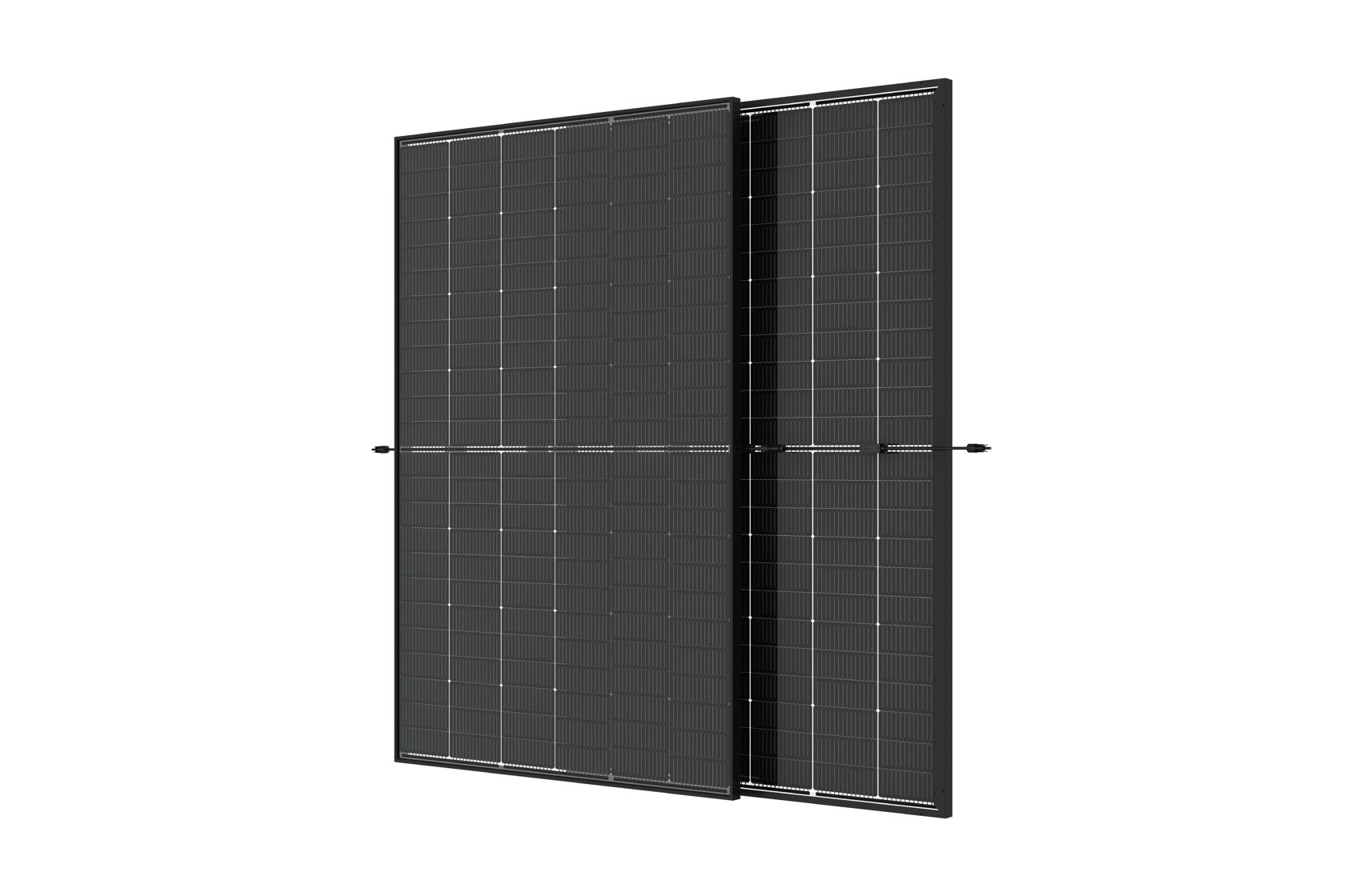

Bifacial All Black:
TSM-NEG9RC.27
Designed for compatibility with existing mainstream system components, modules are easy to handle and install on roofs with excellent size and light weight. Multi-busbar technology for better light trapping effect, lower series resistance and improved current collection.

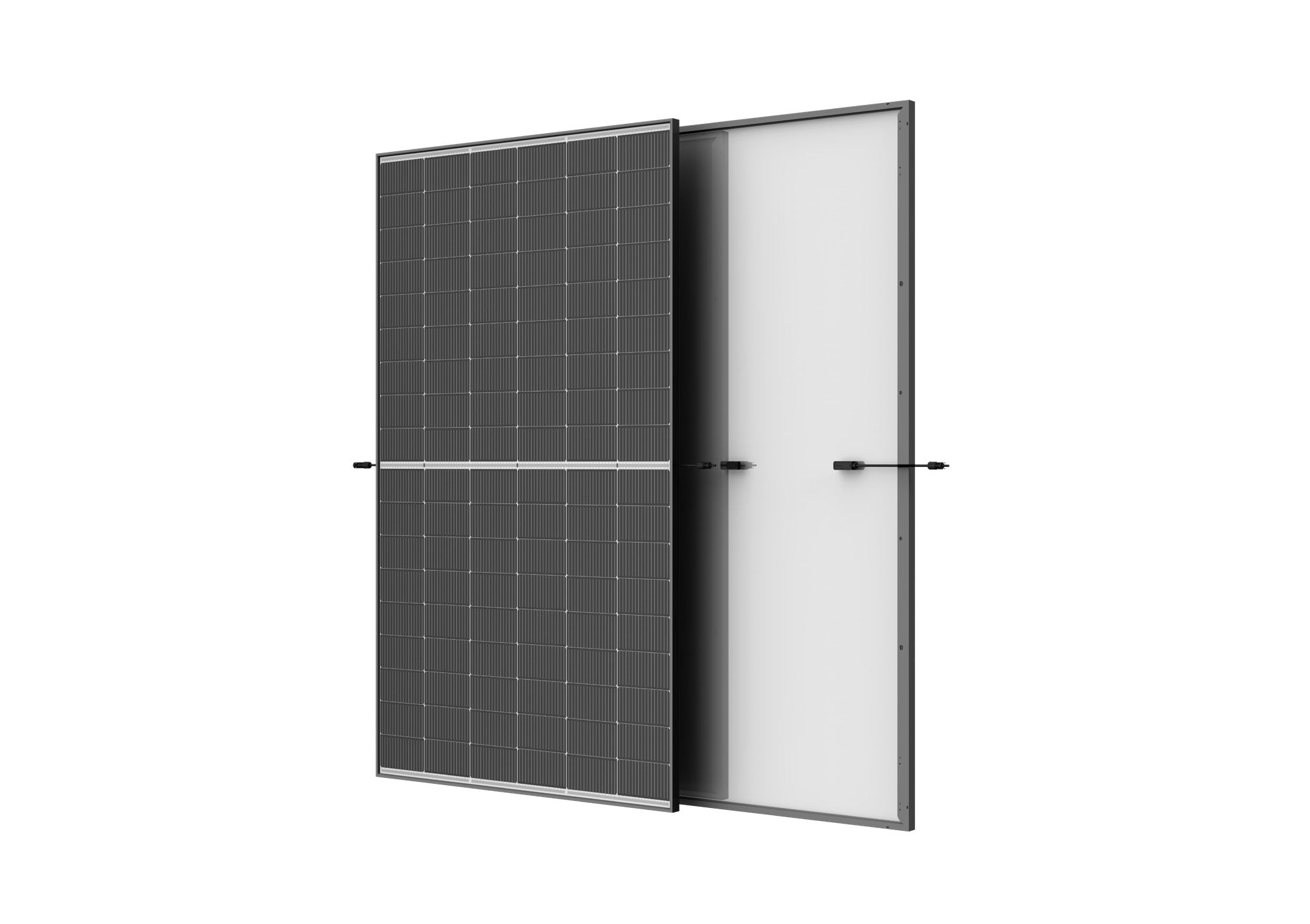

Black Frame:
TSM-NEG18R.28
Vertex S+ comes with an extended 15-year product warranty and a full 30-year power warranty-for peace of mind and long-lasting returns.
Product Parameters(STC)
| Peak Power Watts-PMAX (Wp)* | NEG19RC.20 600W | NEG19RC.20 605W | NEG19RC.20 610W | NEG19RC.20 615W | NEG19RC.20 620W |
| Power Tolerance-PMAX (W) | 0 ~ +5 | ||||
| Maximum Power Voltage-VMPP (V) | 40.3 | 40.5 | 40.8 | 41.1 | 41.4 |
| Maximum Power Current-IMPP (A) | 14.91 | 14.94 | 14.96 | 14.98 | 14.99 |
| Open Circuit Voltage-VOC (V) | 48.4 | 48.7 | 49.0 | 49.3 | 49.6 |
| Short Circuit Current-ISC (A) | 15.80 | 15.83 | 15.86 | 15.89 | 15.91 |
| Module Efficiency η m (%) | 22.2 | 22.4 | 22.6 | 22.8 | 23.0 |
